MDE PLANTING MACHINE SPM100
FEATURES

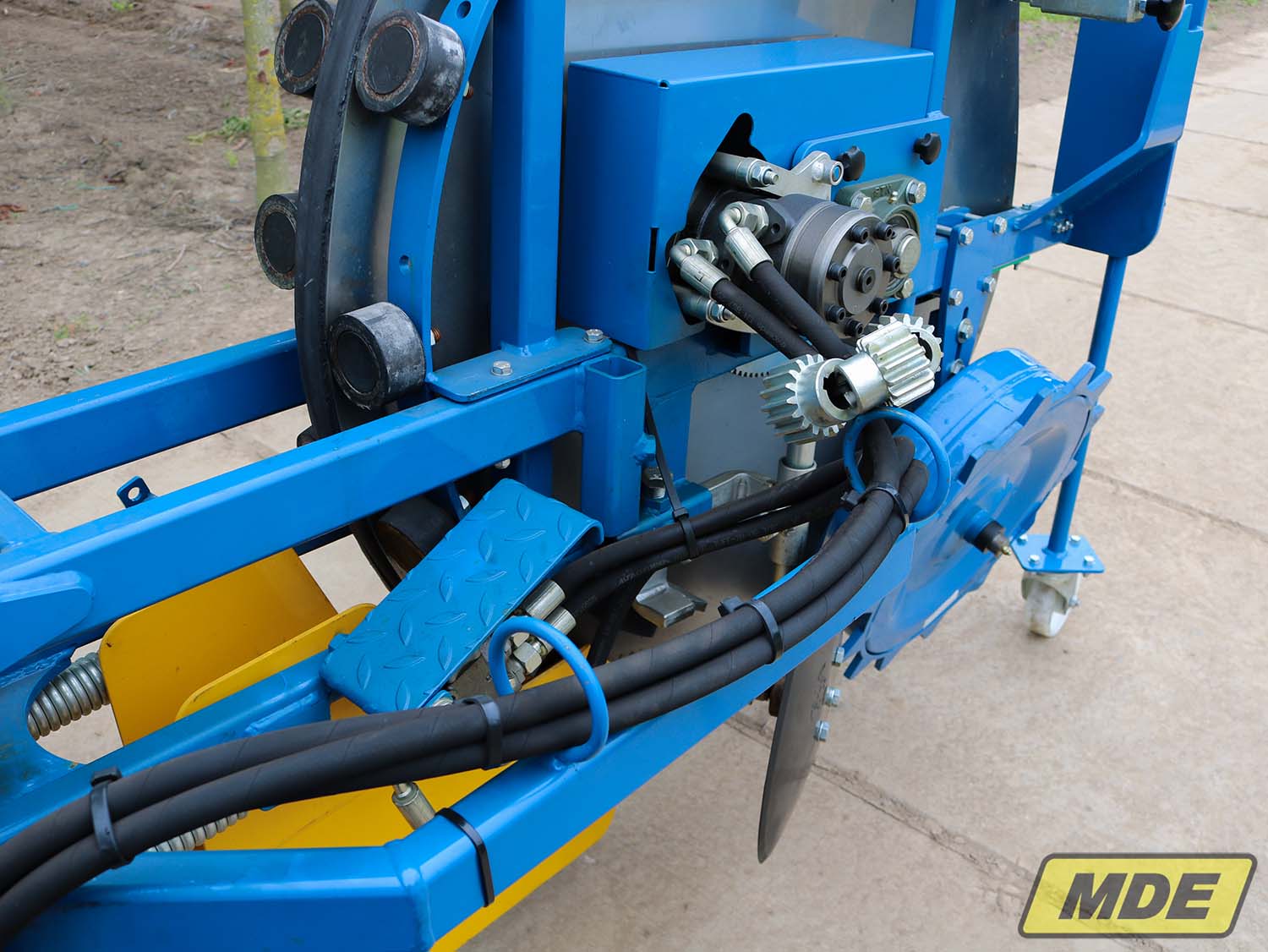

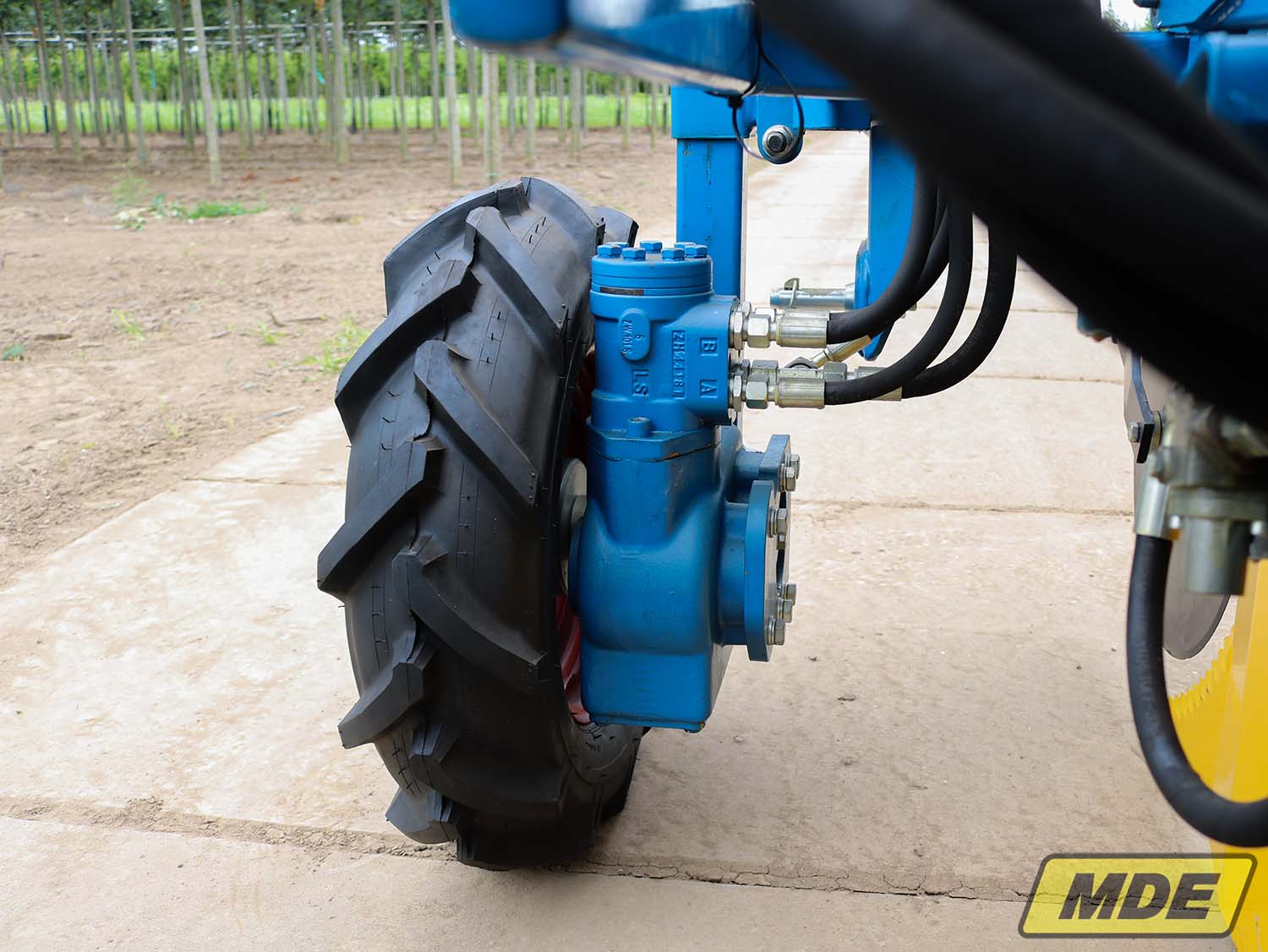

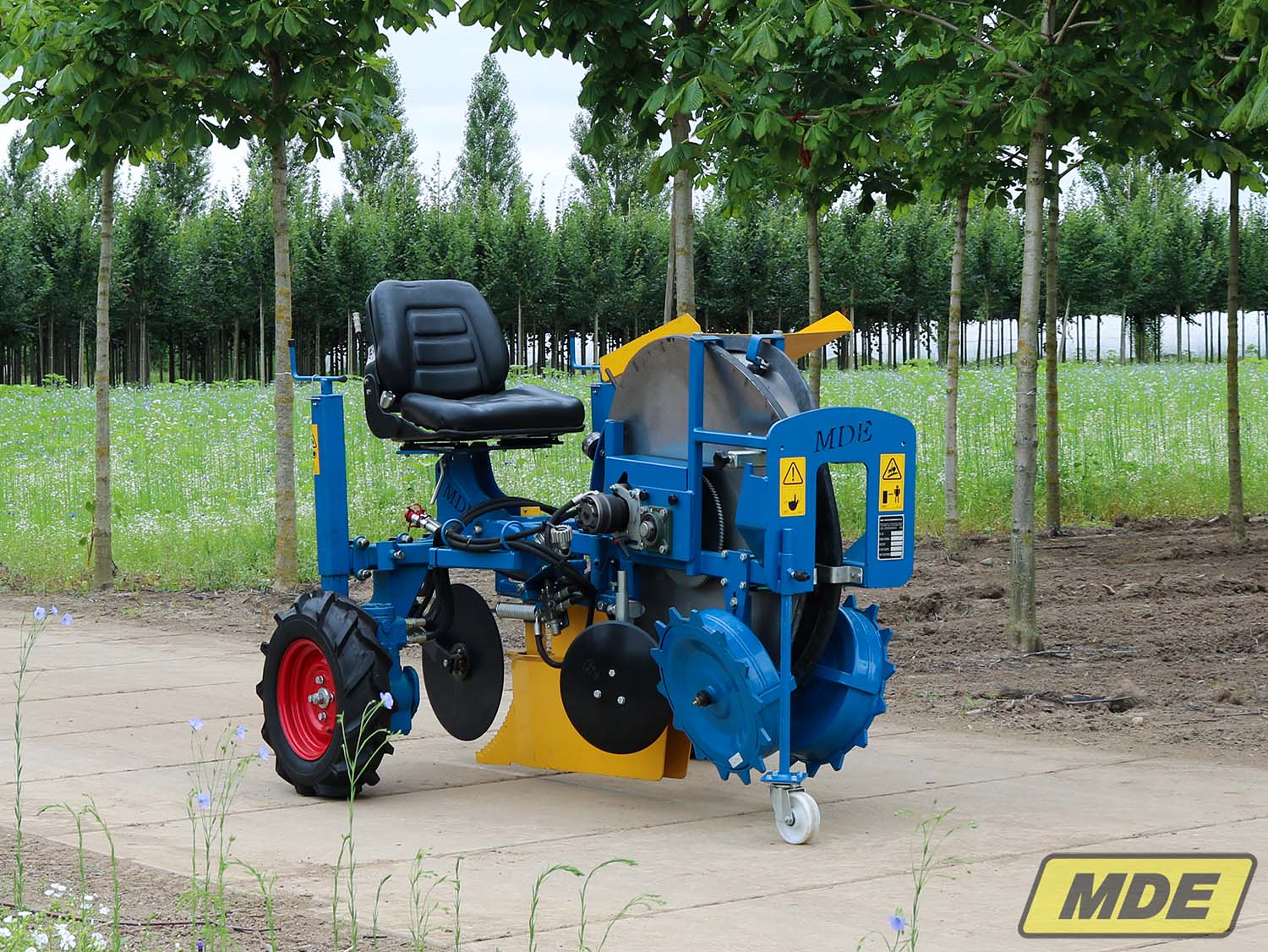

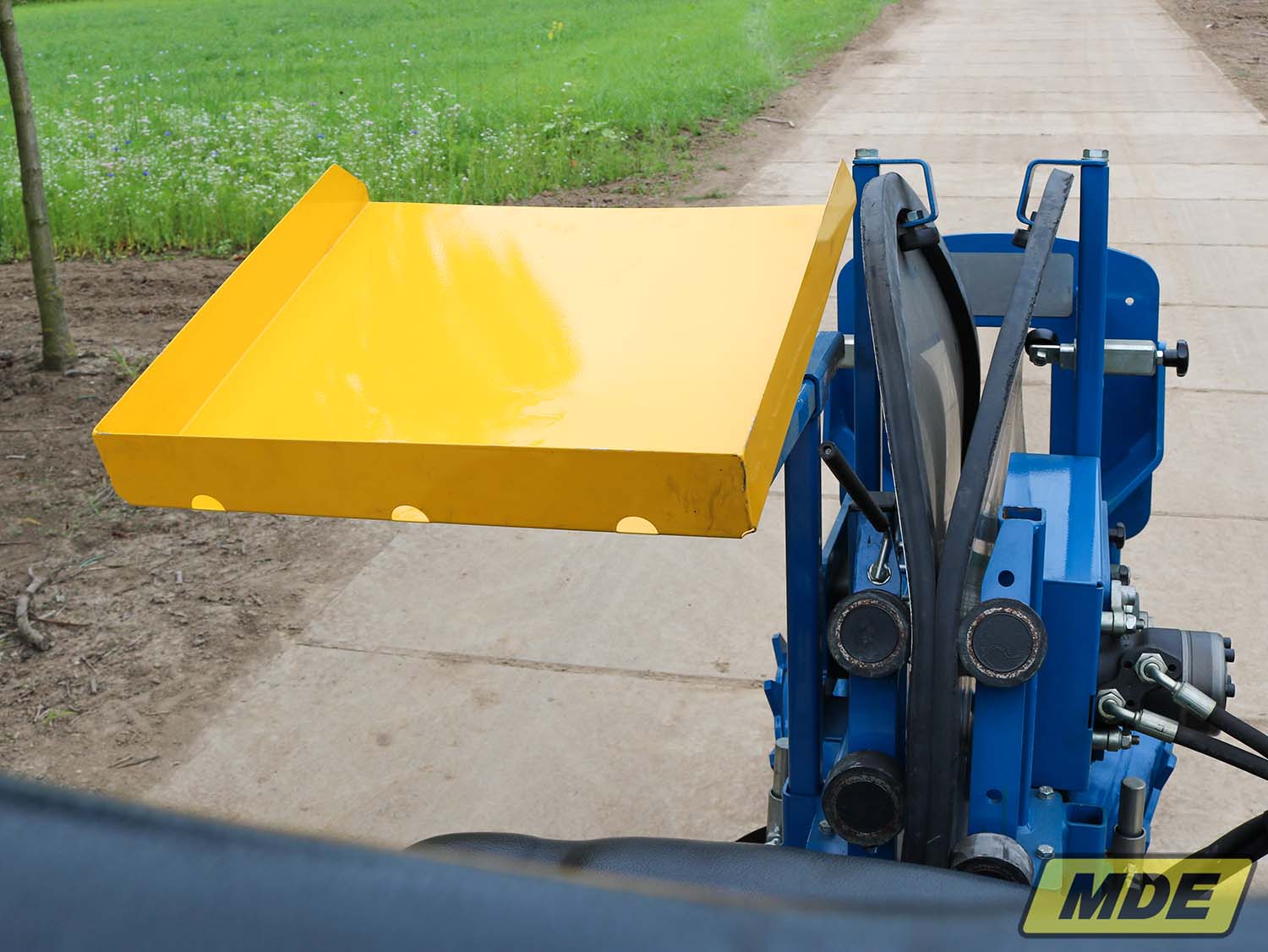

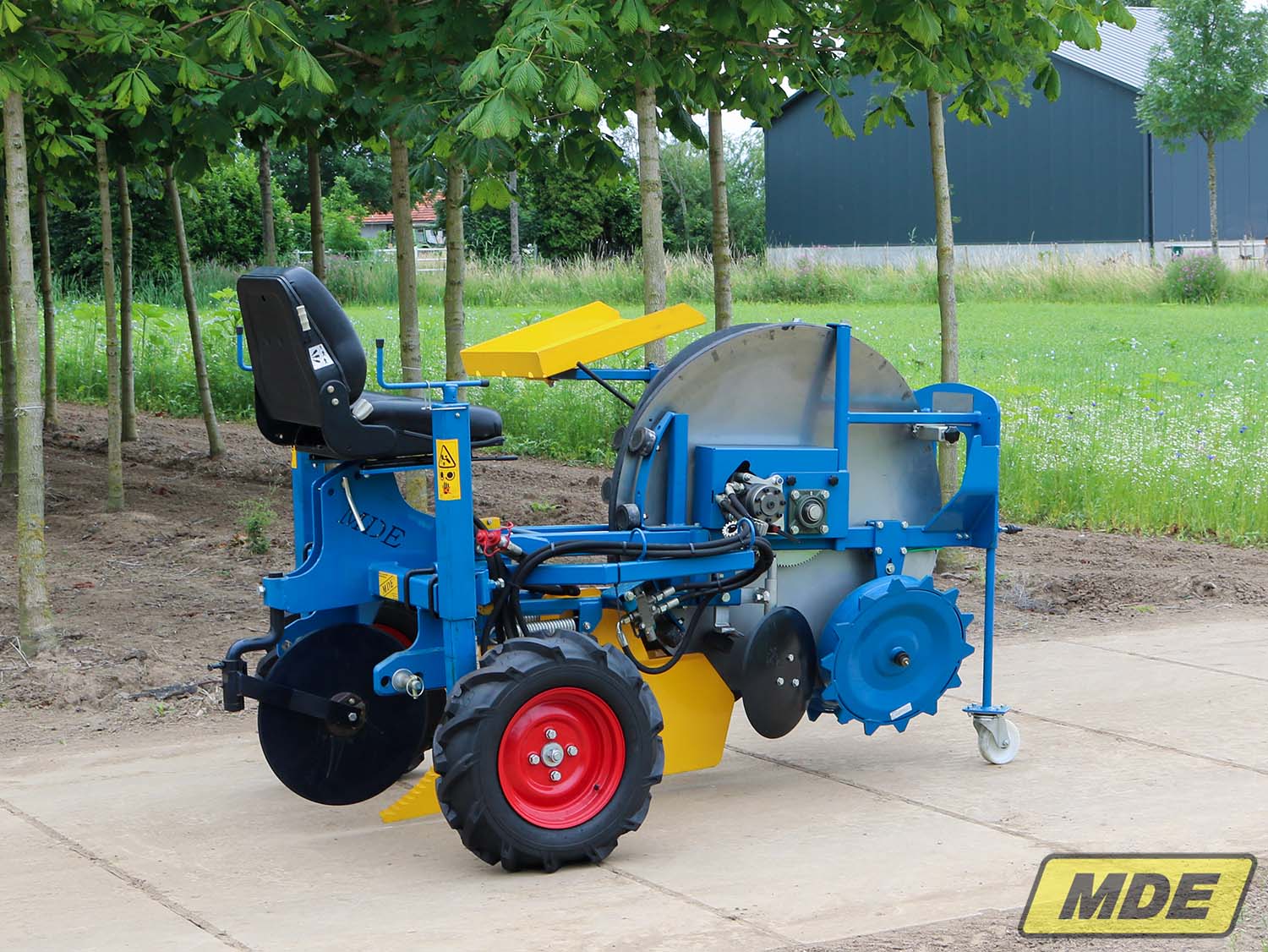

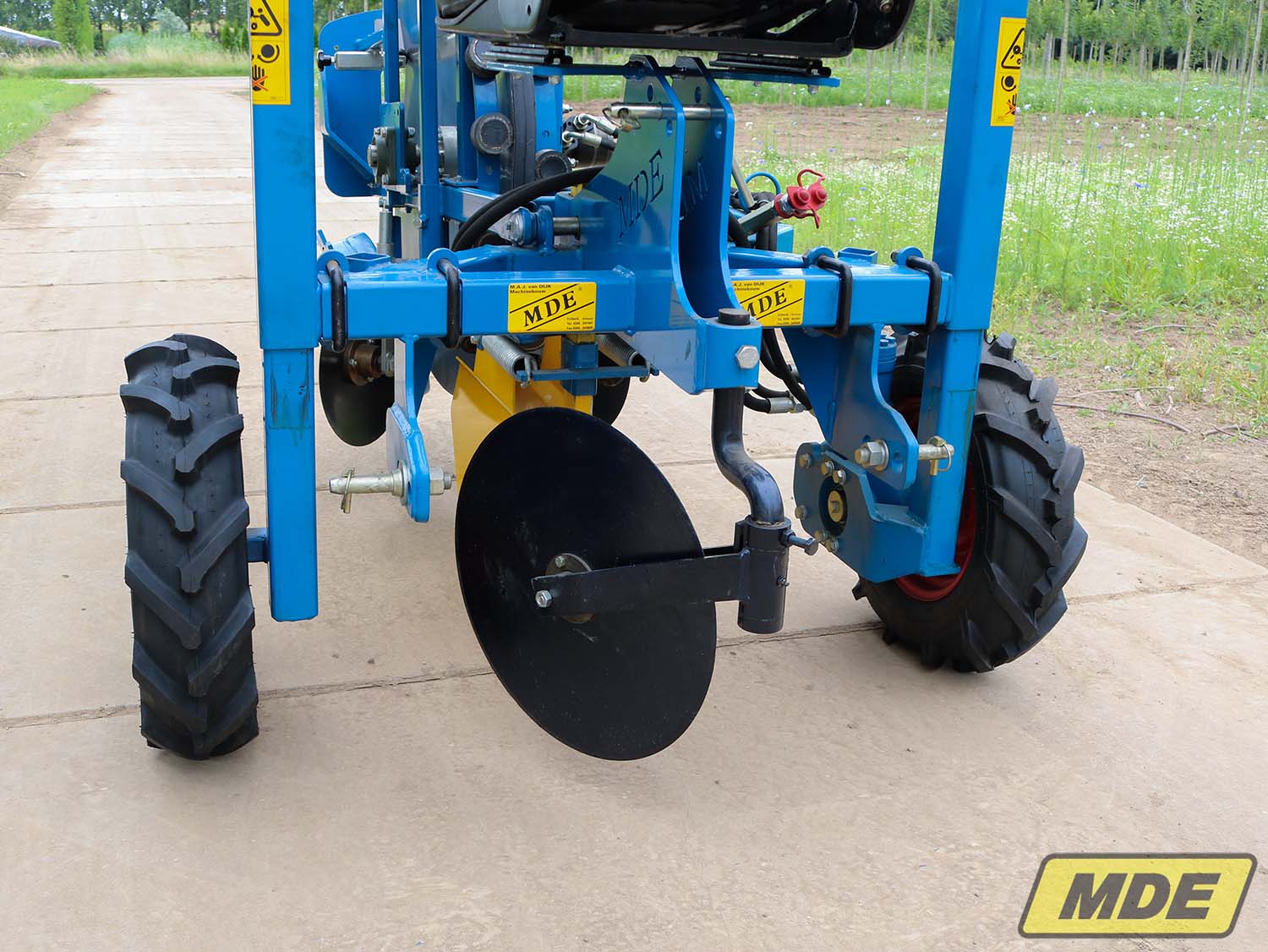

Planting machine SPM100 with a disk plant unit for trees up to one meter in length. This machine consists of a frame containing a dismountable plant canal. In front of the machine are mounted two infinitely adjustable wheels to keep the machine at the correct height. For the plant canal is placed a cutting disk coulter which cuts through the soil and optionally root residues. A disc-wheel brings the tree from an ergonomic seat position automatically at the right place in the plant canal. This wheel turns exactly the right speed. Besides the plant-wheel are two adjustable disks that bring the soil back into the slot. After that are two in height and width adjustable rubber rollers so that the soil is tightly pressed. There is fitted a comfortable suspended seat. There are mounted two loading platforms so that you can take plant material with you.
SPECIFICATIONS
The planting machine SPM100 features:

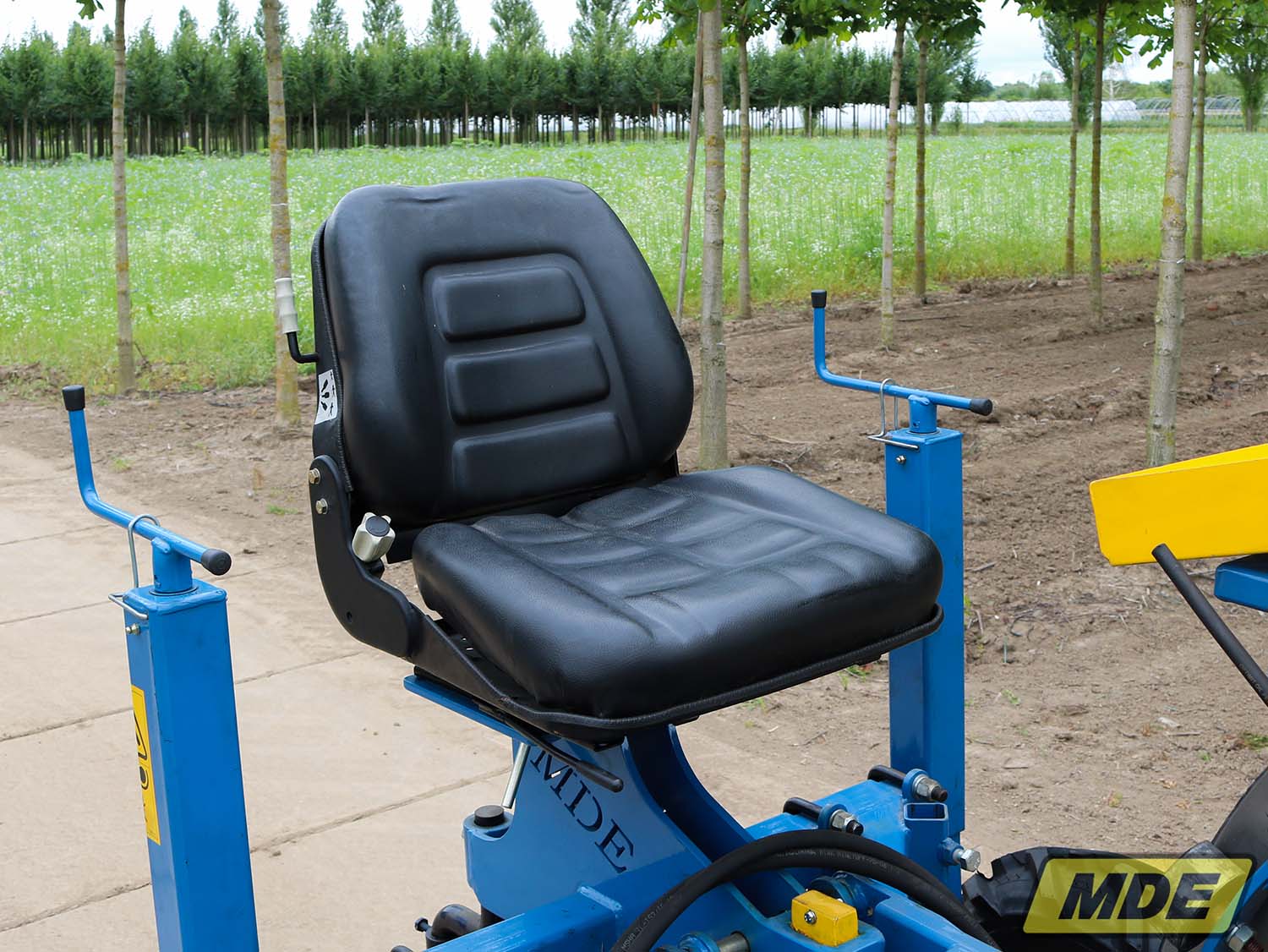

- A deluxe, comfortable chair for working in a natural posture;
- Two planting wheels/discs, which are covered with rubber. The small trees you want to plant are placed between these discs. The discs rotate at exactly the same speed as the driving speed. The planting discs take the little trees down and rotate it into the correct position. The discs put the trees at exactly the right position as desired;

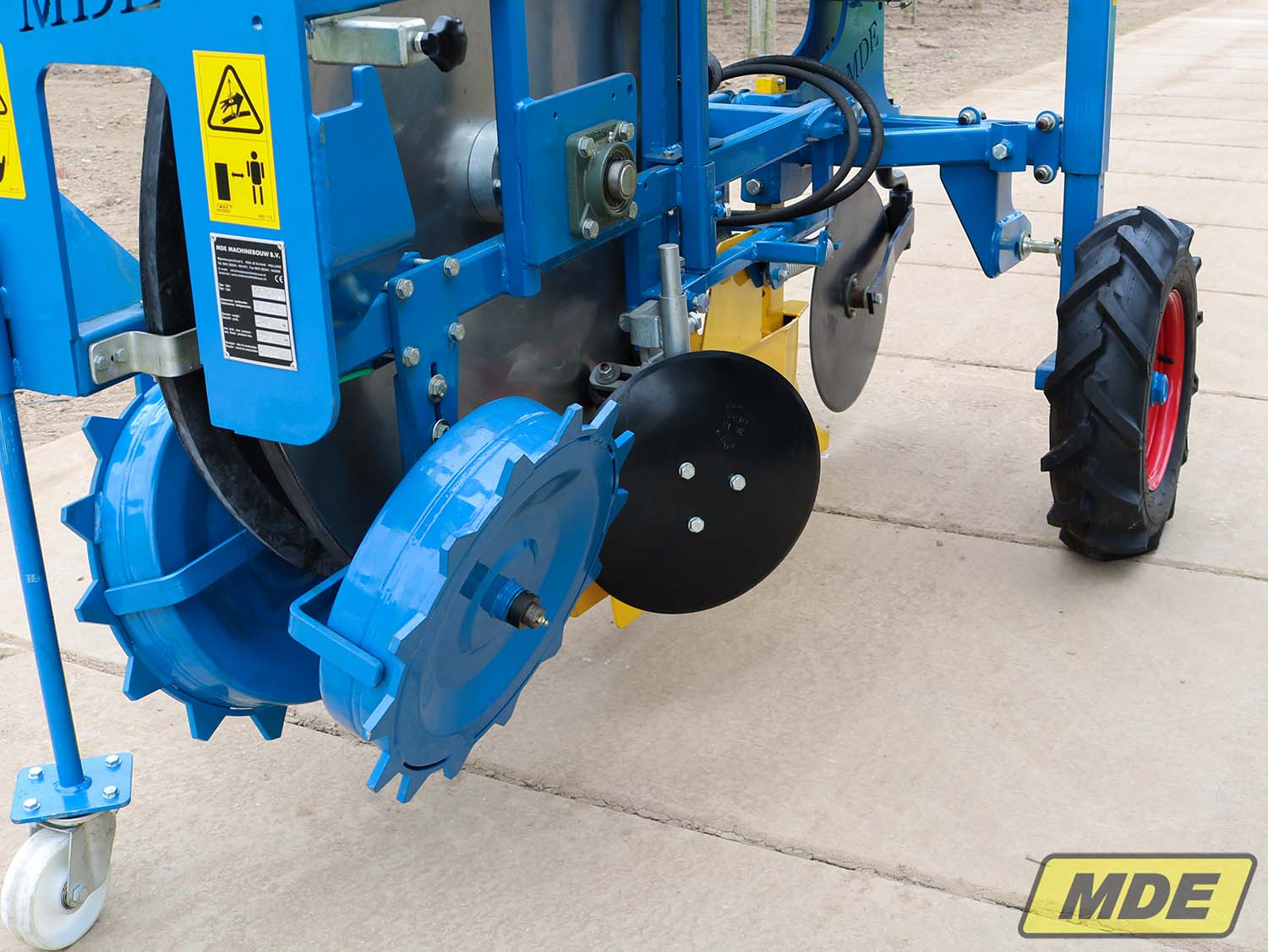

- Two pressure wheels that take care of pressing the soil;
- The possibility of complete adjustment; so it is possible to adjust the machine optimally for any planting distance, for any type of soil et cetera.
OPTIONS
The MDE planting machine can be equipped with the following options:
- Camera straight-row system
- Controlling plant position with GPS
- Width marker

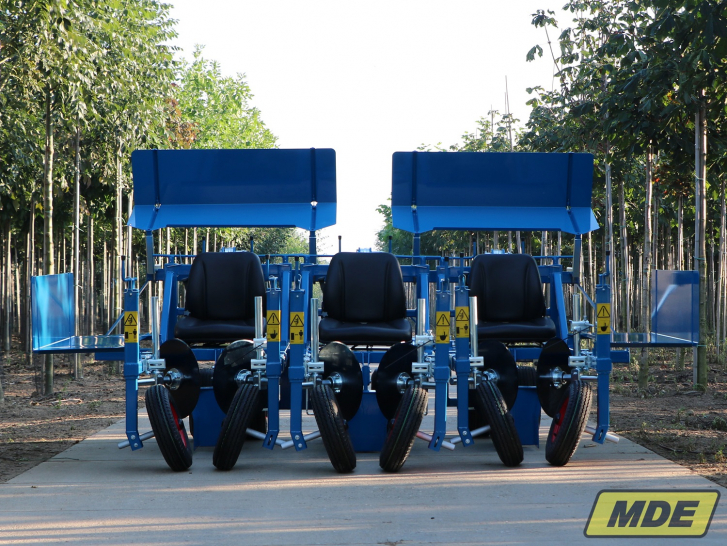

The planting machine is available in a twin version so that two rows can be planted at the same time.
