MDE PLANTING MACHINE PM80

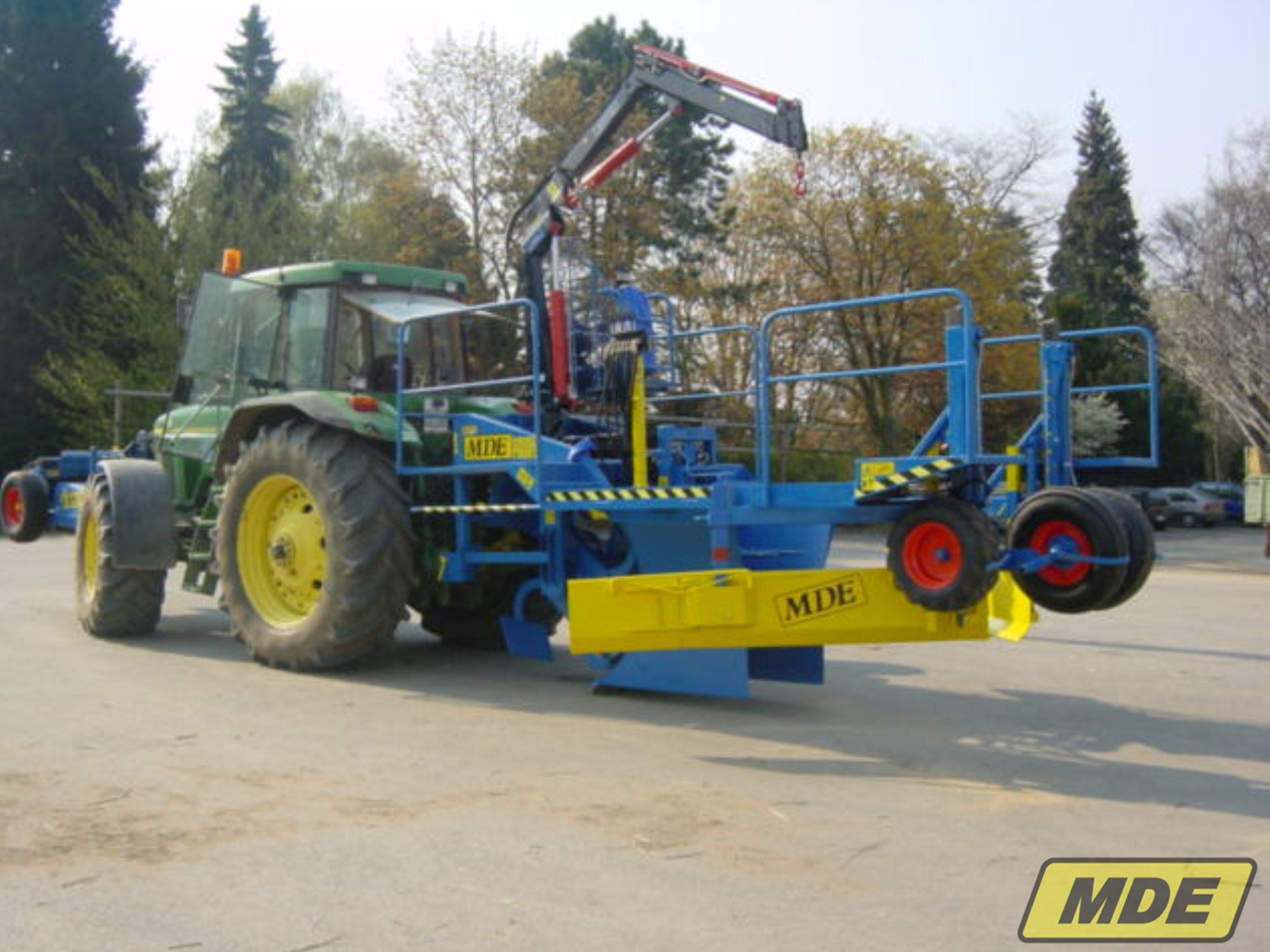

Plantmachine with a plant canal width of 80 cm. The machine is provided with an excavating mechanism and a loading platform of 275 cm wide.
FEATURES
In front of the plant canal is mounted a digging plow with an extra powerful drive. There are screwed eight spades to dig away the earth and placing sideways next to the canal. The whole driveline is secured by a drive shaft which is provided with an automatic torque limiter. If the torque is too high, it plops out. The connection to the tractor is broken. Through the pto to switch off, this connection is automatically restored. There are special seals fitted to prevent the ingress of dirt.

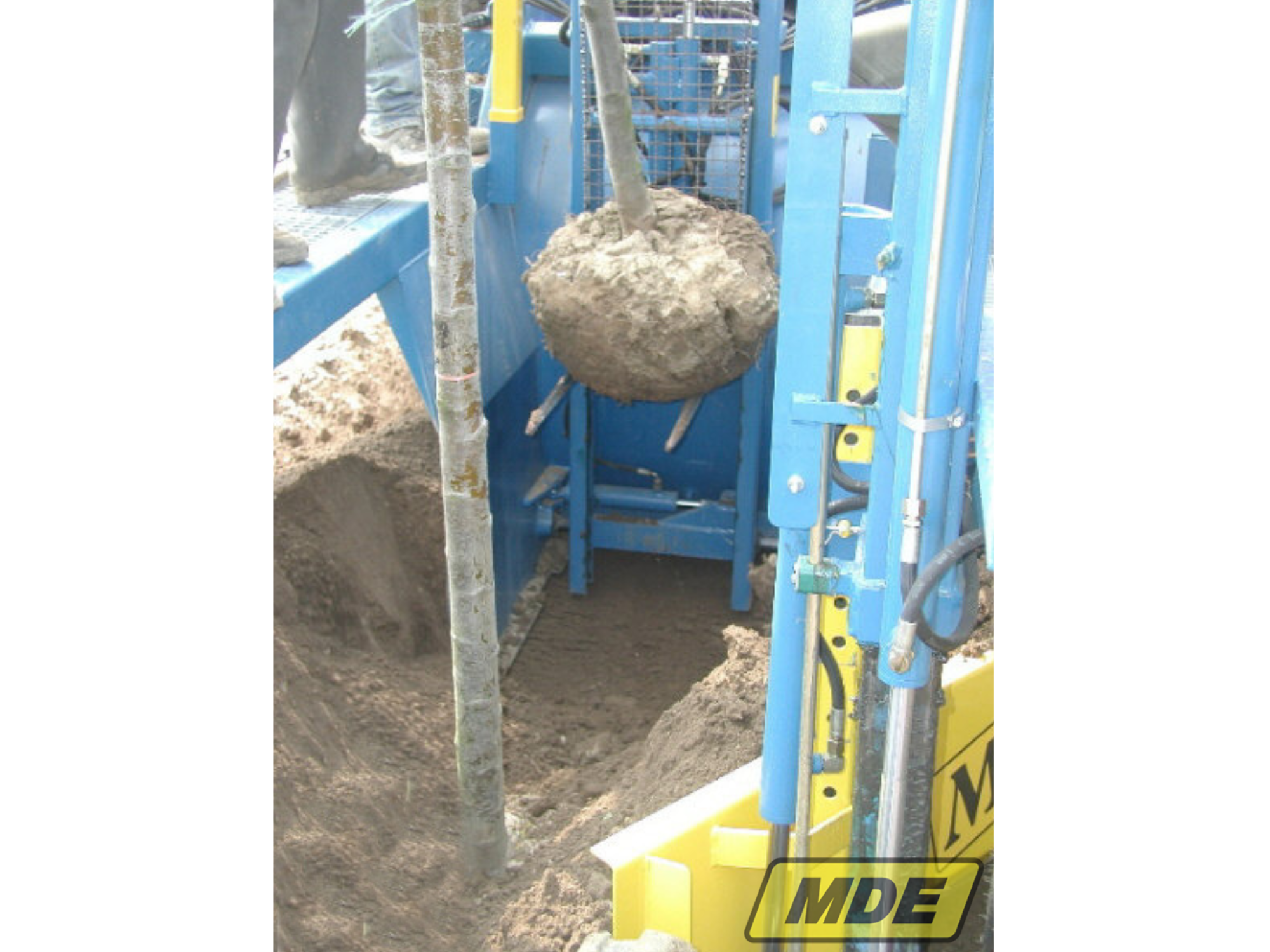

At the front side is mounted an oil reservoir. The oil level can be checked with a dipstick and ensures that the drive is always filled with oil. Behind the plant canal are two in height and length adjustable sliders that close the slot. Two infinitely variable height and width adjustable wheels make sure the soil is well pressed. There is mounted a loading platform above the dig unit so that you can take plant material with you. A hydraulic lift with side shift is standard mounted in the plantcanal to plant trees with rootball exactly in line
SPECIFICATIONS

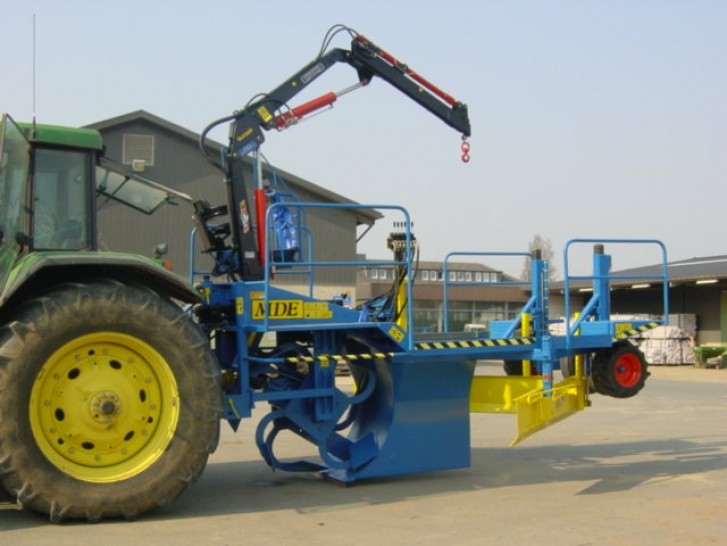

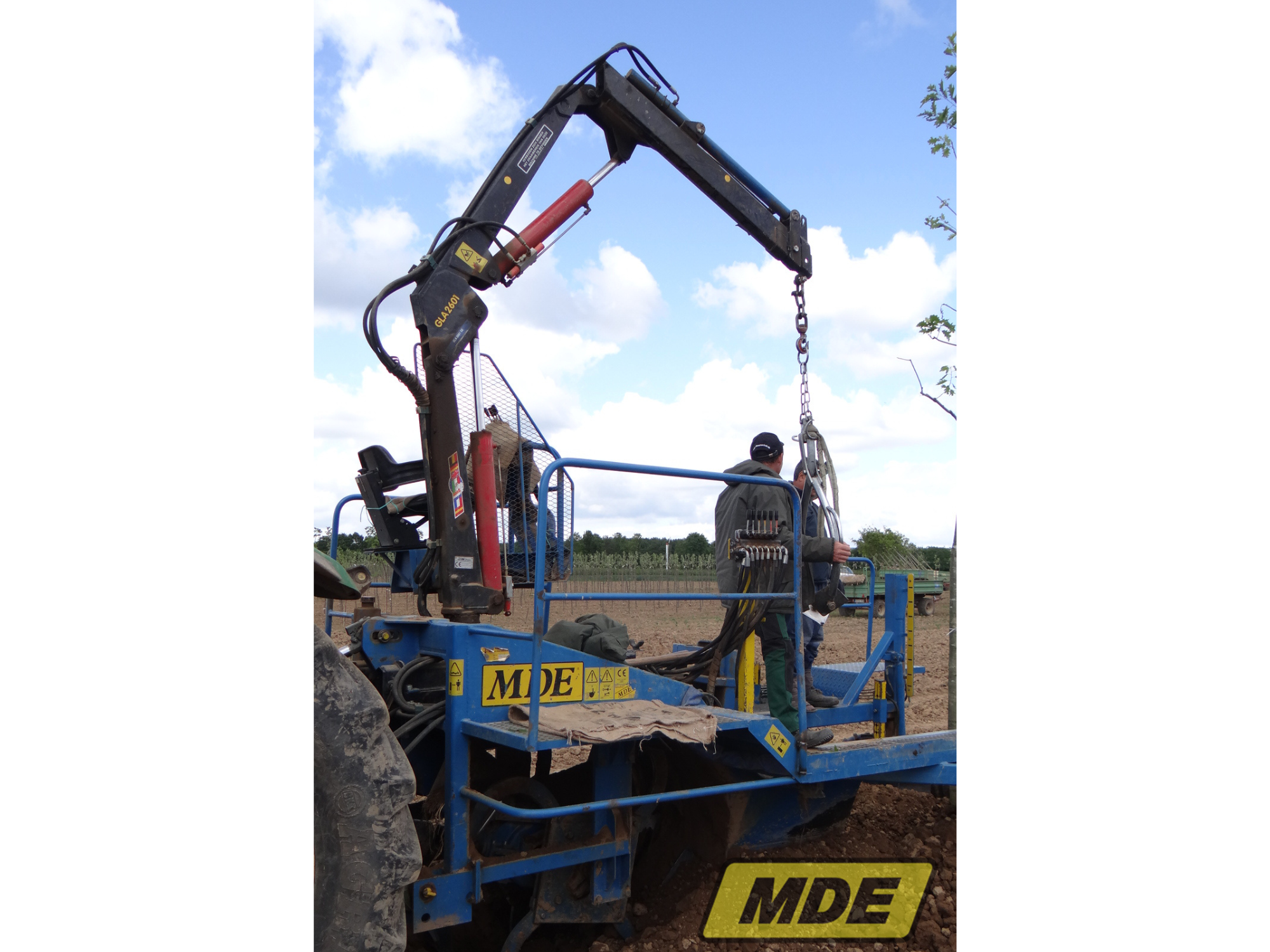

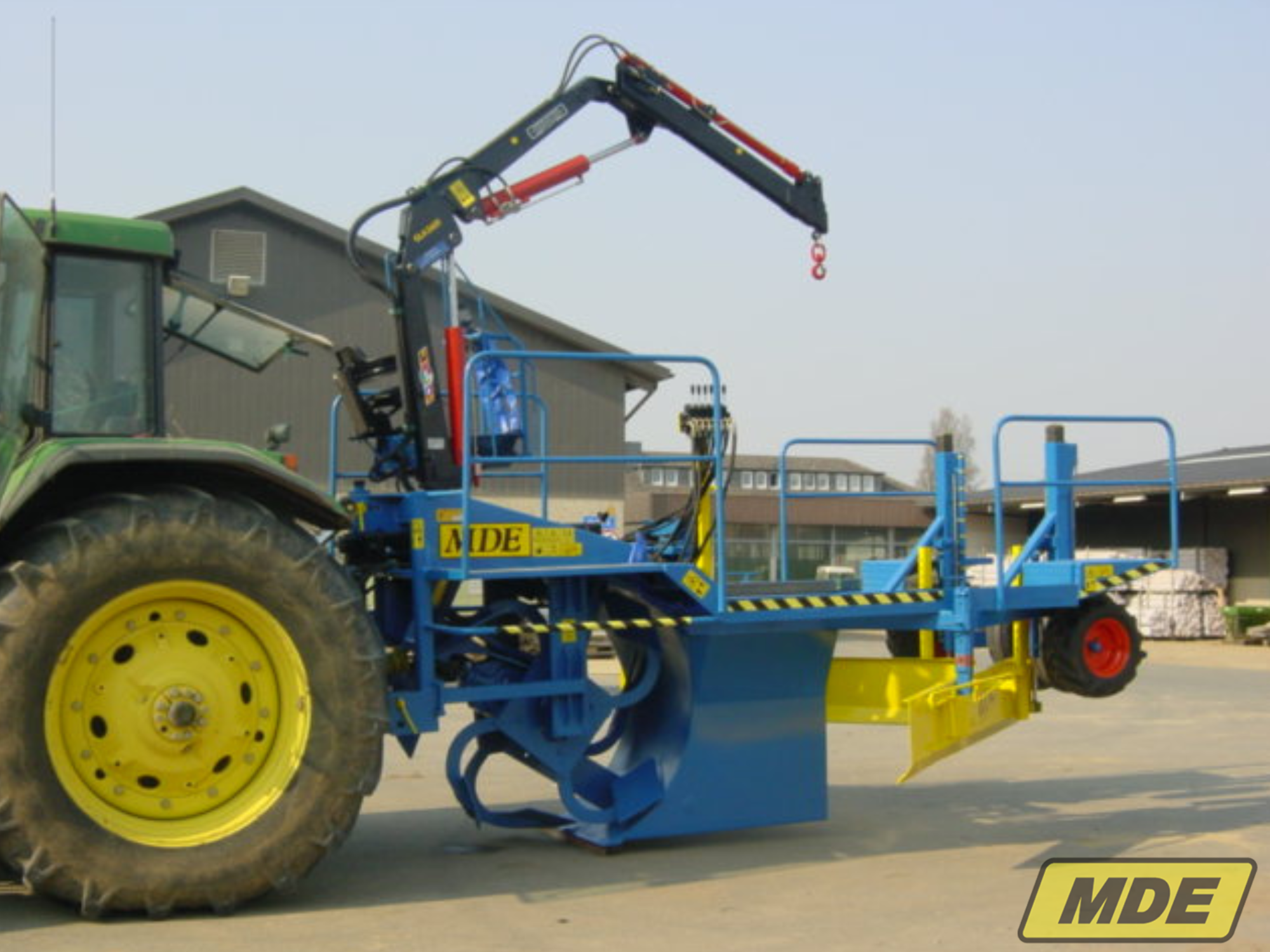

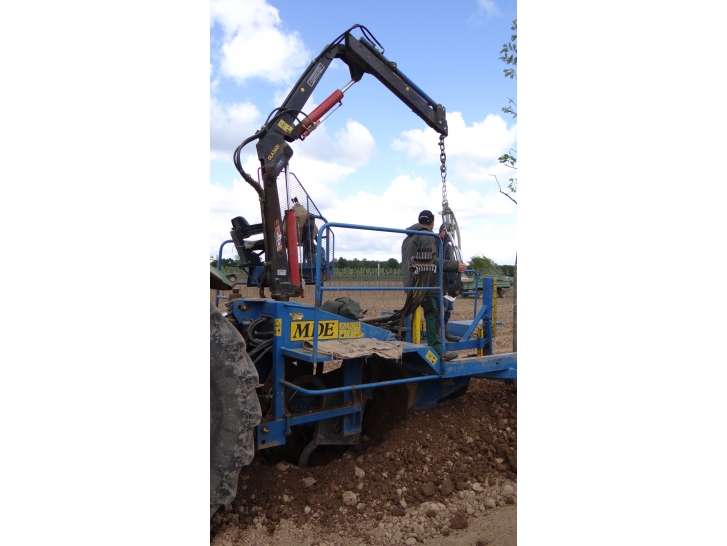

A tree loading crane can be fitted as an option. This crane is hydraulically extendable in and out. The driver turns with the crane so that he always sees exactly what he's doing.
