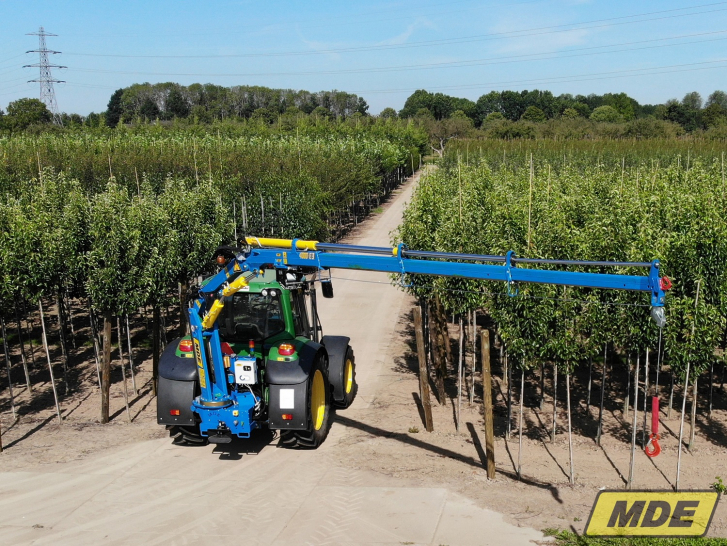

MDE LOADING CRANE 4000E3

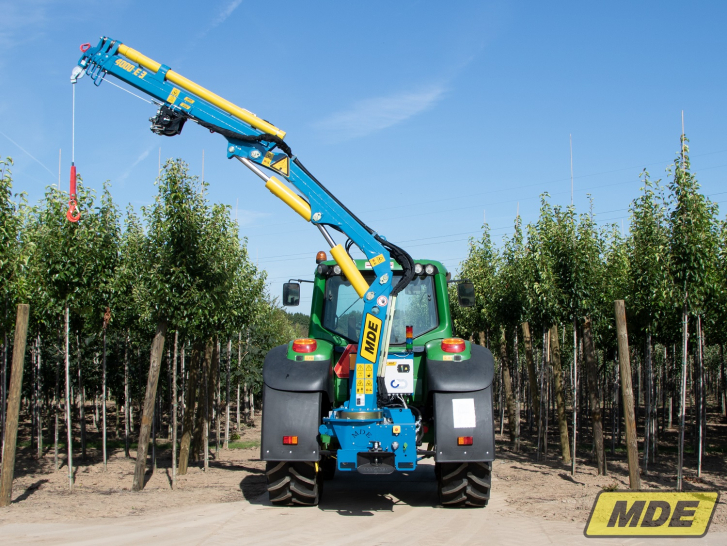

To load the trees with root ball from nursery to transport trailer or to reload the trees from trailer to other trailer, MDE Machinebouw have developed a the MDE tree loading cranes. These loading cranes are mounted on the back side of agricultural tractors. The MDE cranes are distinguished by a large lifting capacity combined with a high speed of swirling and winches. By using special steel types, huge savings can be made on its own weight. The center of gravity is also very low.
FEATURES

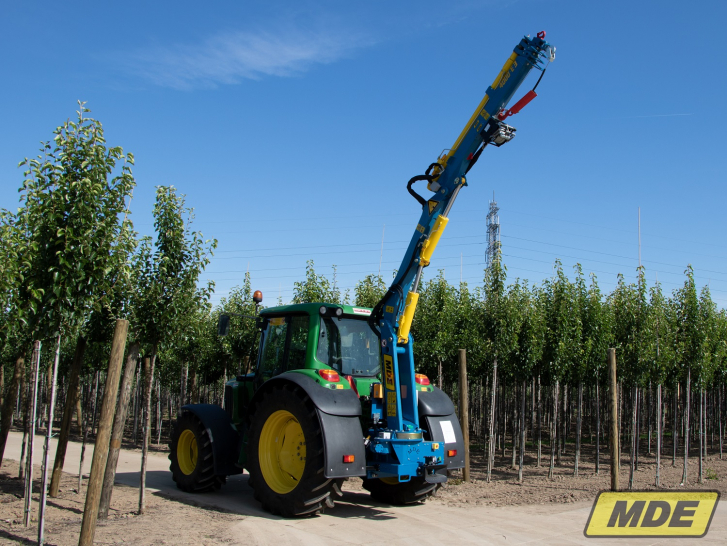

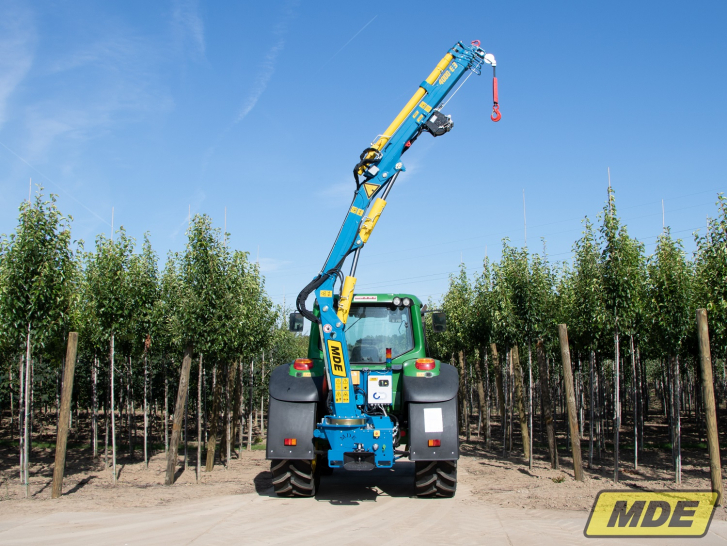

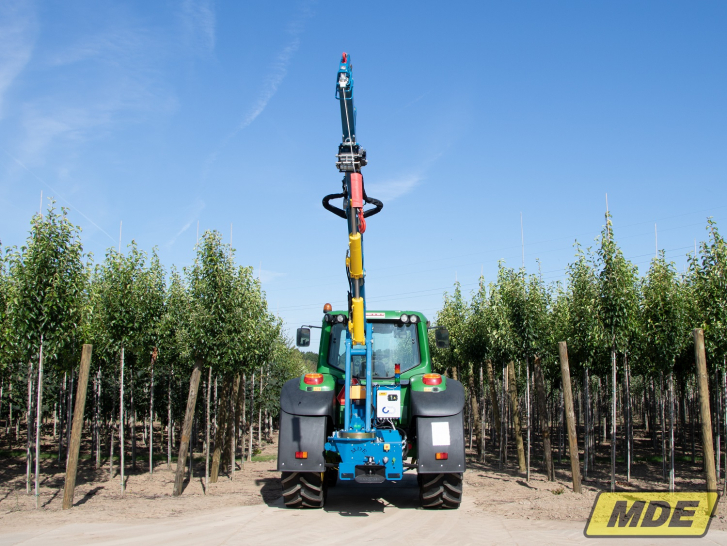

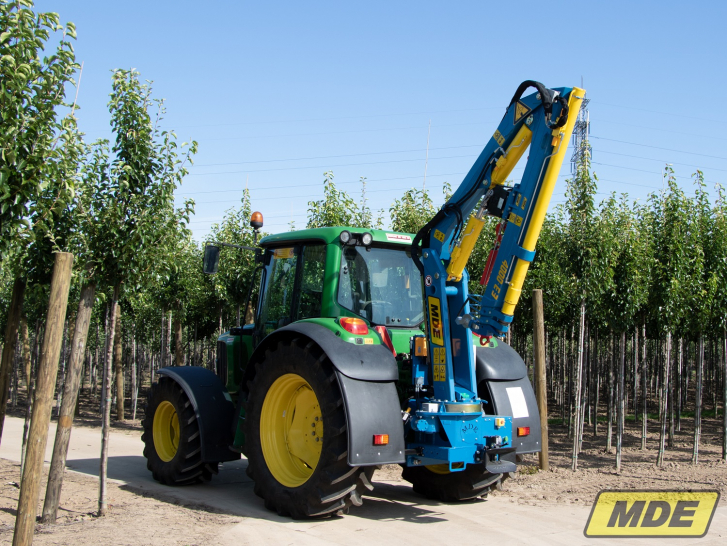

The MDE crane 4000E3 has a construction with two column legs. Between these column legs the crane folds itself, during transport, very compact so that it occupies the half of the place. This has the advantage:
- The shafts and bearings are loaded centrically and this results in less wear and tear;
- Secure and stable crane-movements;
- The crane has a short length construction behind the tractor.

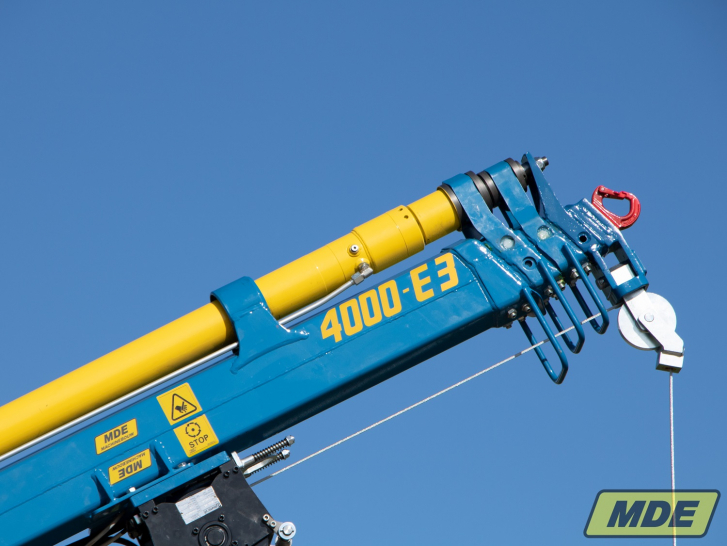

MDE crane use a turntable with swing motor just as mobile cranes, with this construction it can be rotated very quickly. As a standard, there is mounted a high-speed winch with long steel cable. Due to this combination of fast crane and winch can be loaded many trees in a very short period on the trailer pulled by the tractor.
Lifting force table MDE type 4000E3, according to DIN 15.018:

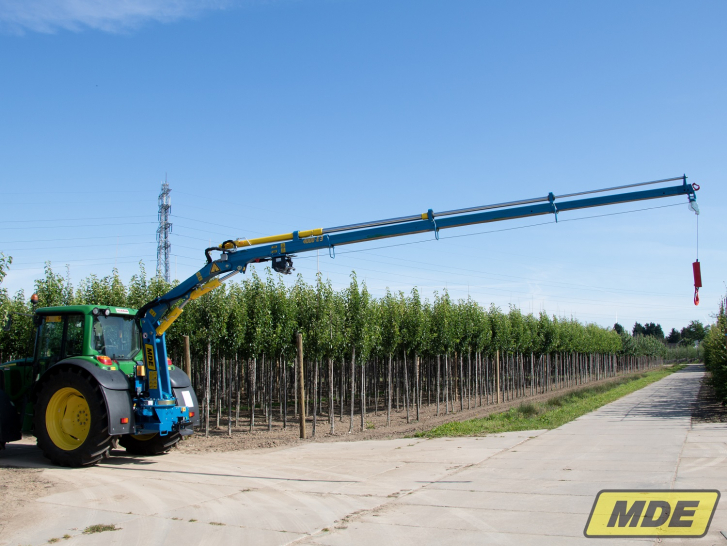

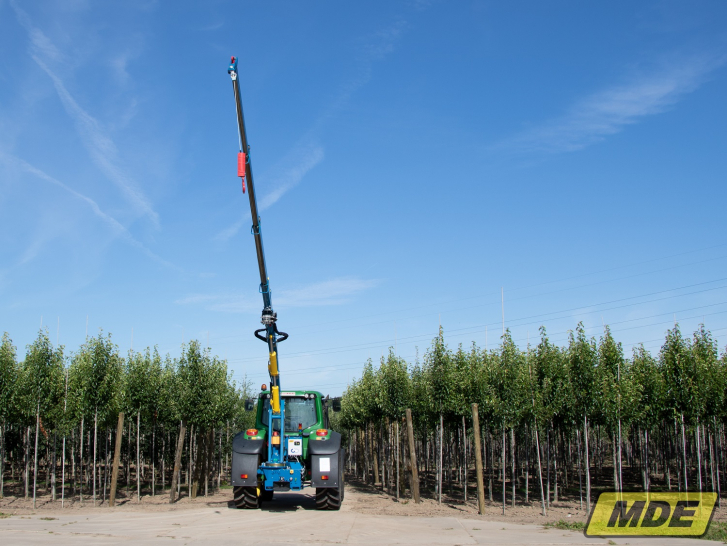

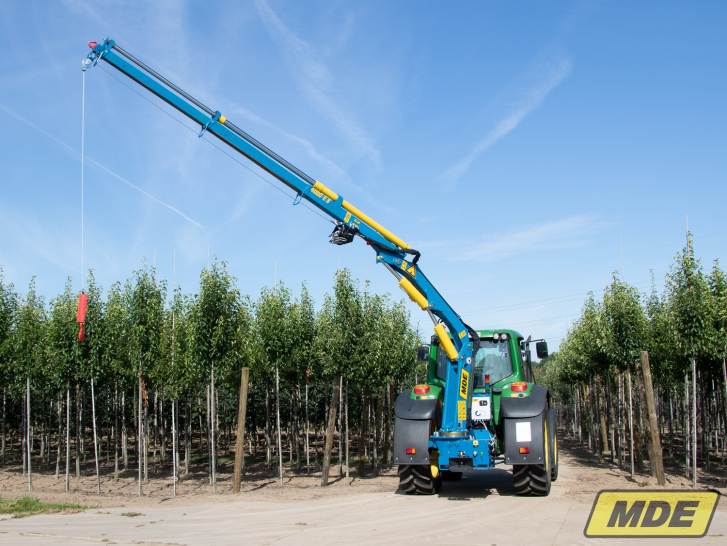

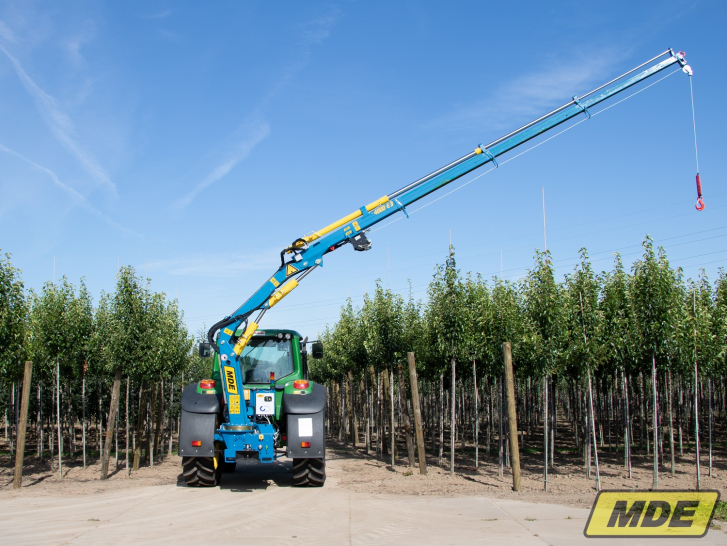

Max. hydraulic range
- fully extended: 1830 kg. - 2,00 m.
- 1x extended: 720 kg. - 5,05 m.
- 2x extended: 520 kg. - 6,69 m.
- 3x extended: 400 kg. - 8,40 m.
Above mentioned values are theoretical values that the crane can lift, however the final values depend on the type of tractor on which it is mounted (The weight and the track width of the tractor are very important.)
OPTIONS
The MDE tree loading crane can be equipped with the following options:

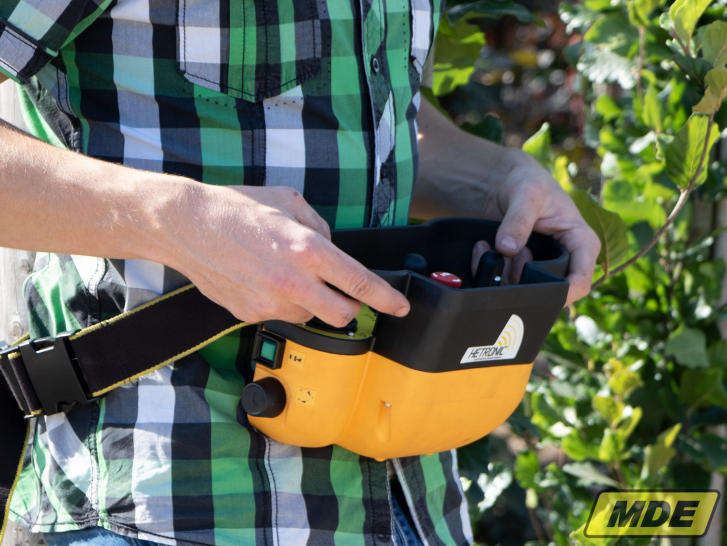

- Radio control. Full radio control is also possible, so that not only the crane, but also the tractor can be radio controlled (driving, steering, accelerating)
- 4th manual extension (10.5 meters length)
- Hydraulic support legs
- Lockable tool box
- Rootball holder
- Grease lubrication system
