MDE PRUNING PLATFORM QUATRO 275B

The MDE pruning platform Quatro 275 has everything necessary to perform good pruning work. This pruning platform has a low starting height and a working height of up to approximately 4.75 meters.

3-8

FEATURES

Standard dimensions of the MDE pruning platform Q275B:
- The floor height is 100 to 275 cm;
- The total length of the pruning platform is 315 cm;
- Outside wheel width of the pruning platform is 105 cm;
- The dimensions of the working platform are: 295 x 85 cm.

The MDE pruning platform Q275B is equipped with:
- 3-cylinder Kubota of 25 hp;
- Above a complete dashboard with control lights and controls;
- Extra wide tires with coarse profile for super grip;
- 4-wheel drive;
- 2 axles steered: possibility to operate both the front axle and the rear axle separately;
- Driving speed infinitely adjustable;
- Steps for easy entry;
- Waterproof tool box with lid on dashboard;
- The platform door is equipped with a storage space for a large amount of tonkin sticks;
- Very solid and stable construction.

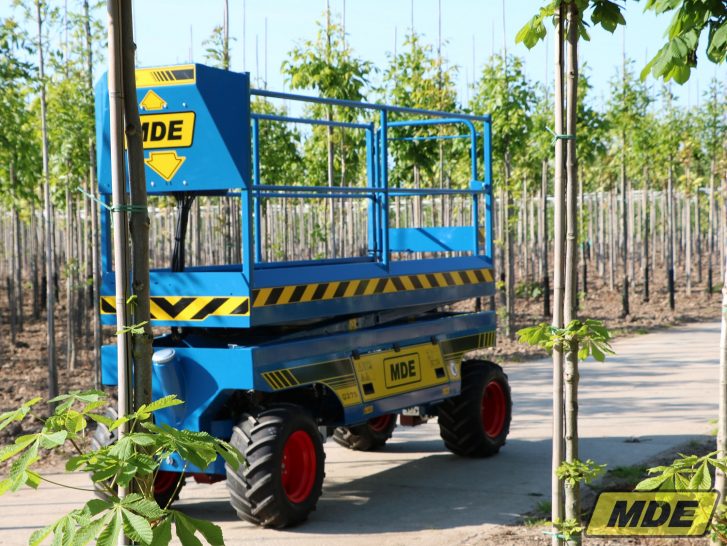

4-9

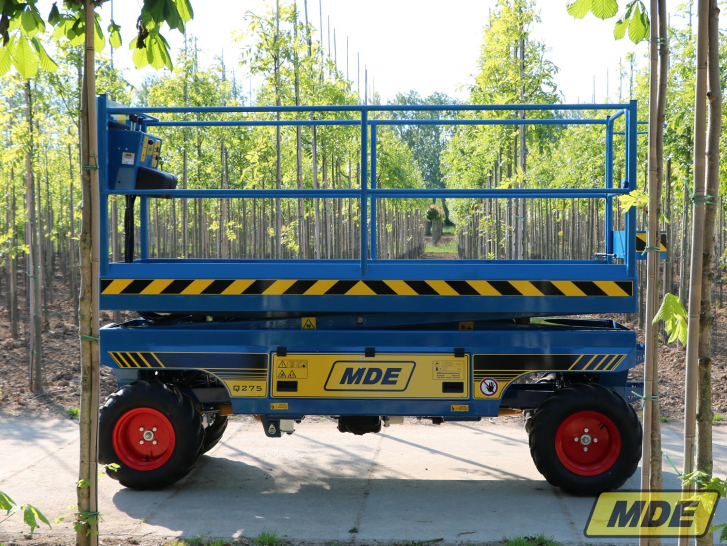

1-13
12-7

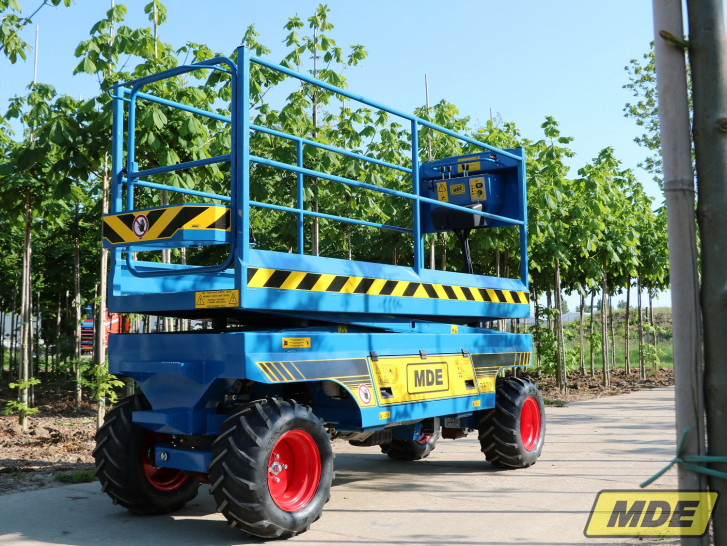

5-9

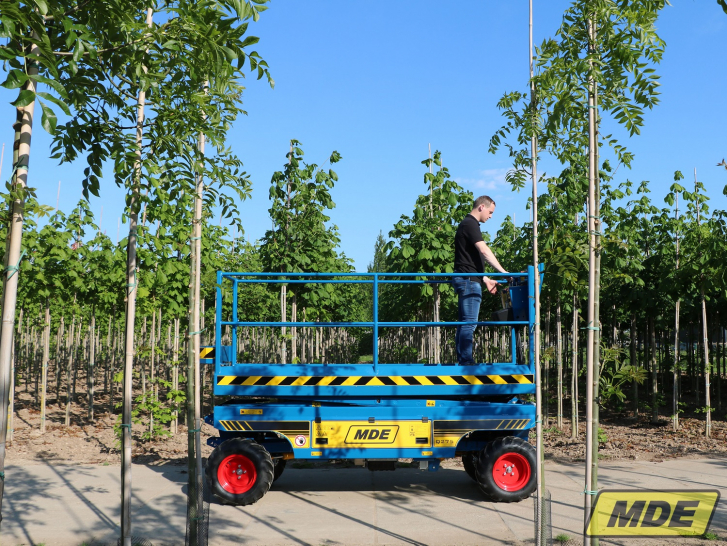

7-6

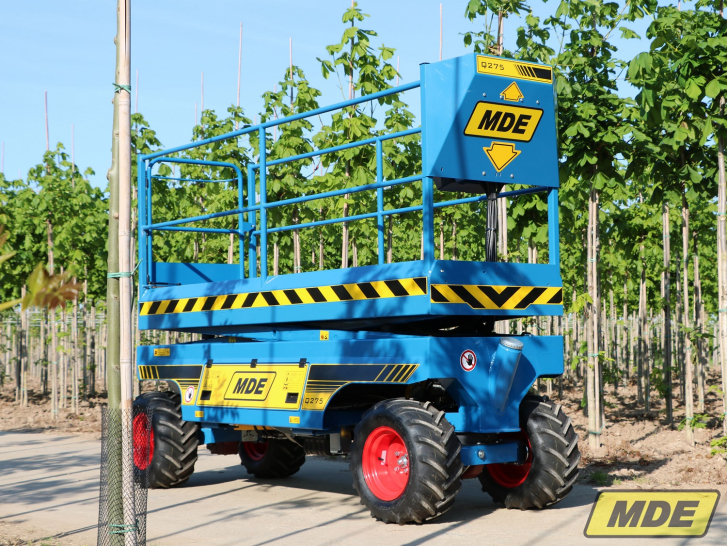

2-8
10-6
8-6

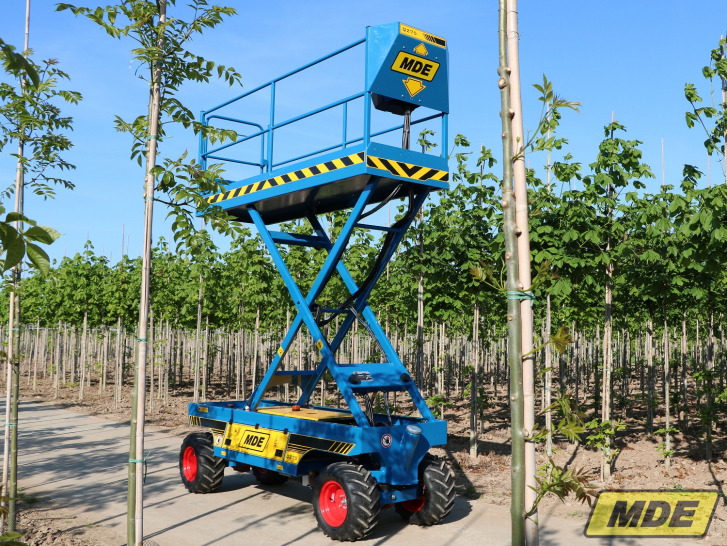

9-4
13-7

More information?

Discover for yourself what MDE Machinebouw can offer you. You are always welcome in our showroom or request a quote directly.

If you would like to know more about our machines or services, please let us know.

OPTIONS

The MDE pruning platform can be provided with the following options:
- Radio
- Canopy
- Engine protection
- Compressor
- Adjustable platform
- Tool box
- Reel support for binding tube
- Solid tyres
- Anti-leakage liquid
- Track and trace
