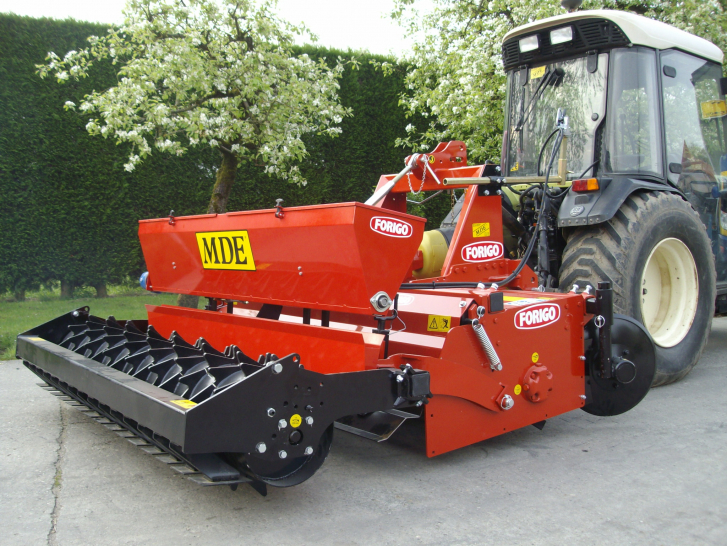

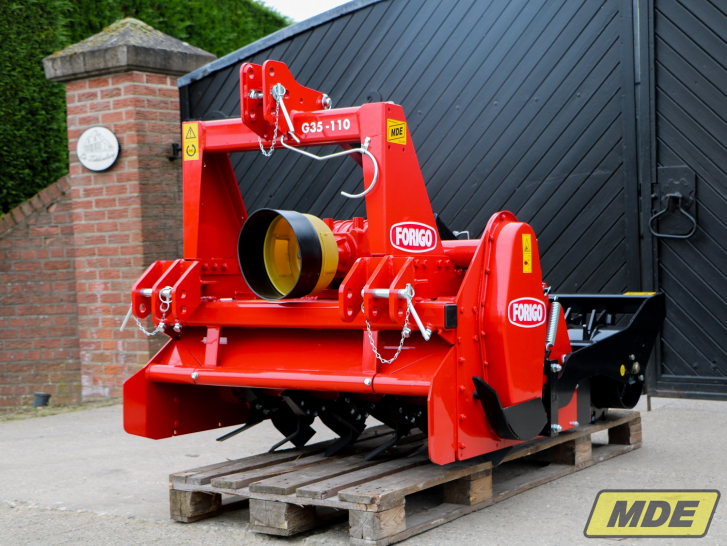

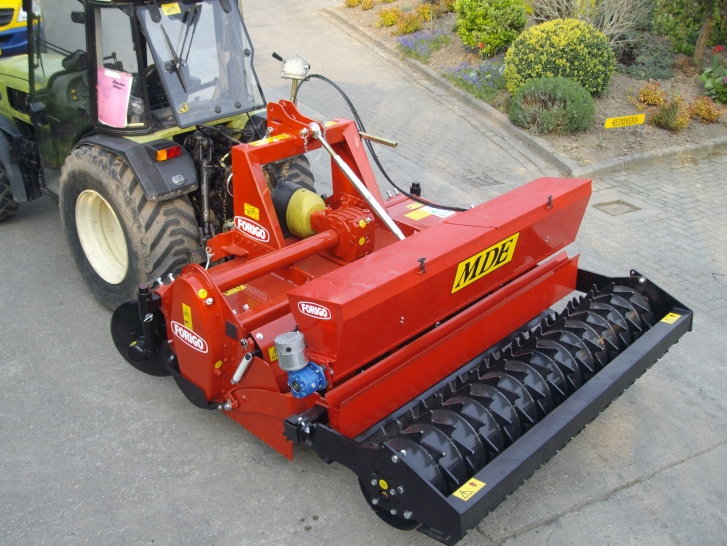

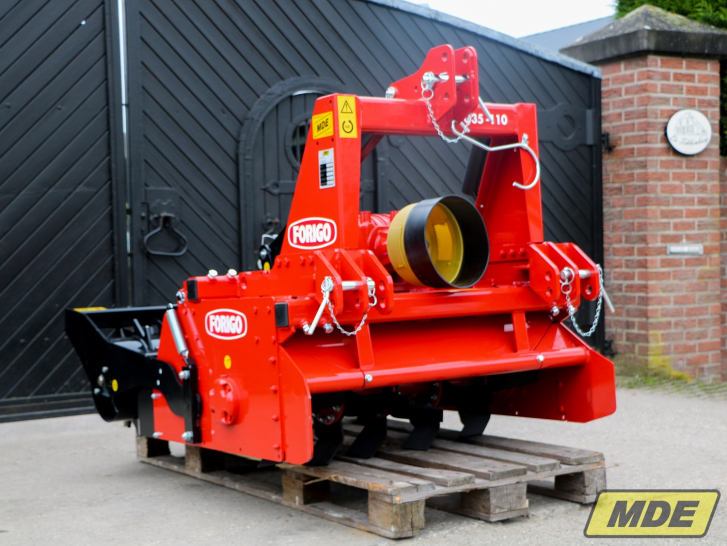

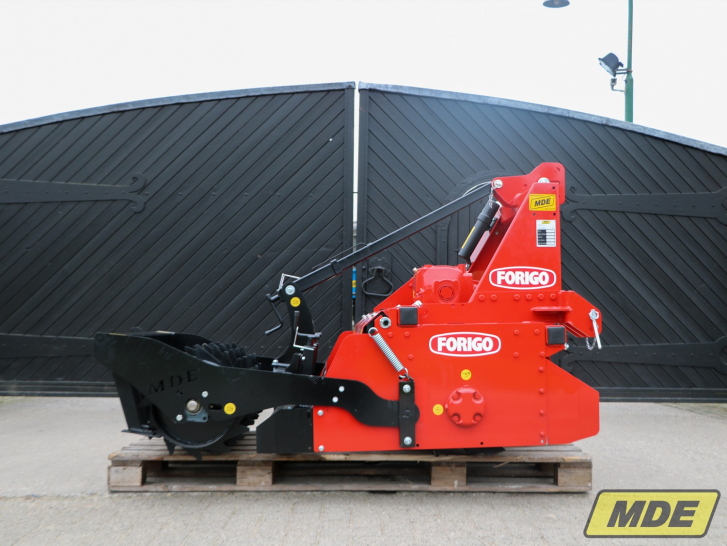

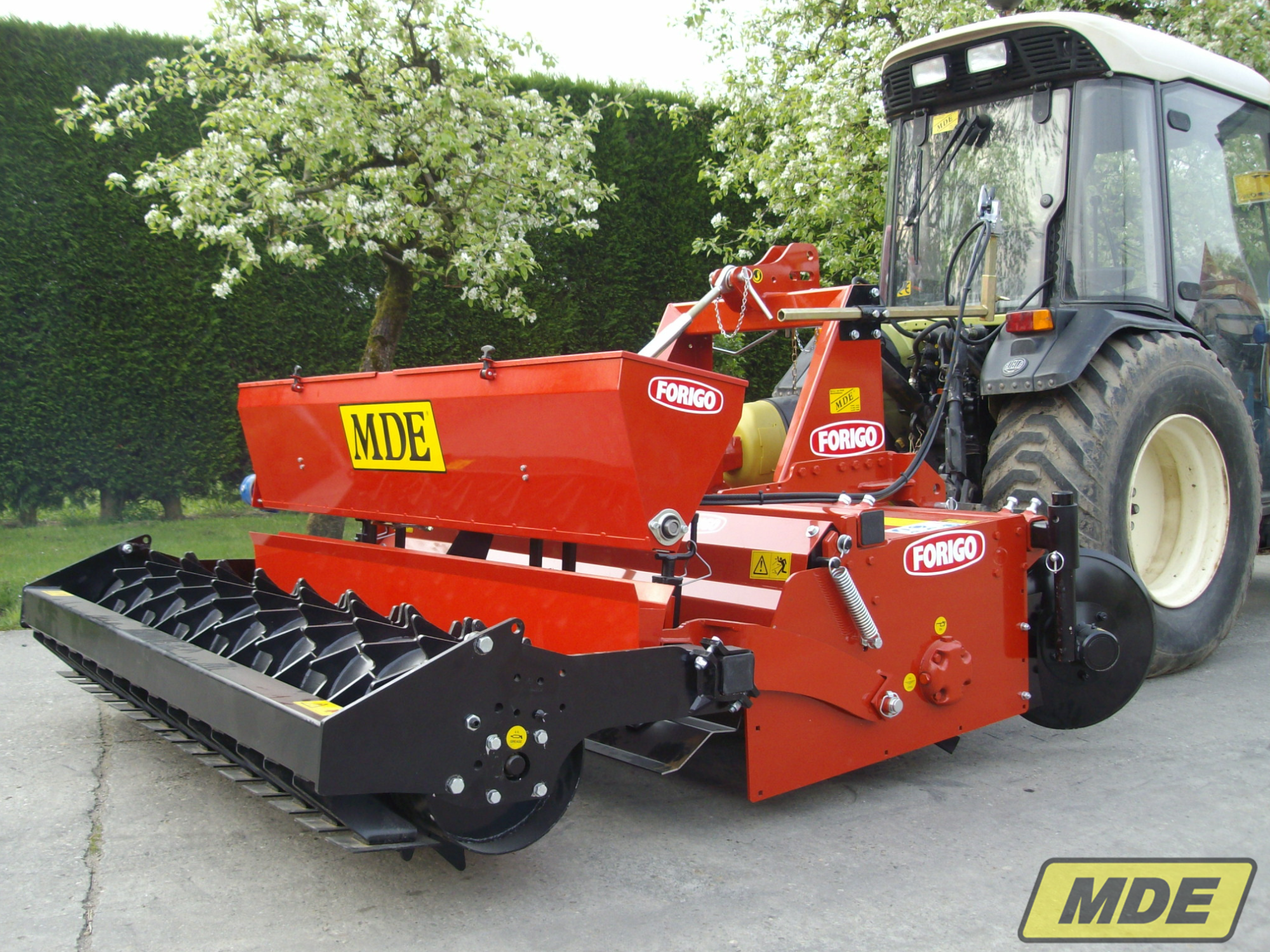

MDE/ FORIGO SOIL LEVELING ROTAVATOR

FEATURES

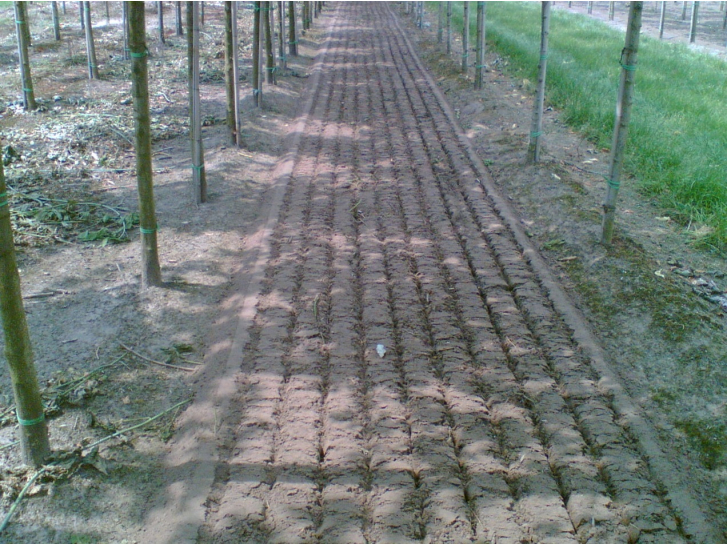

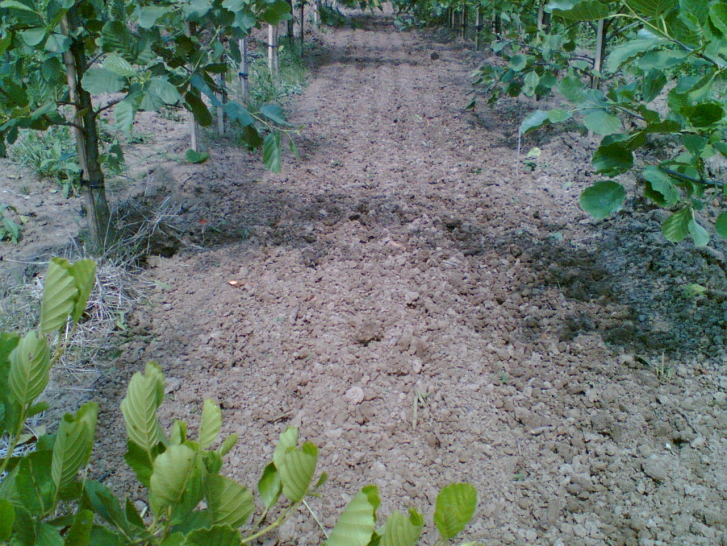

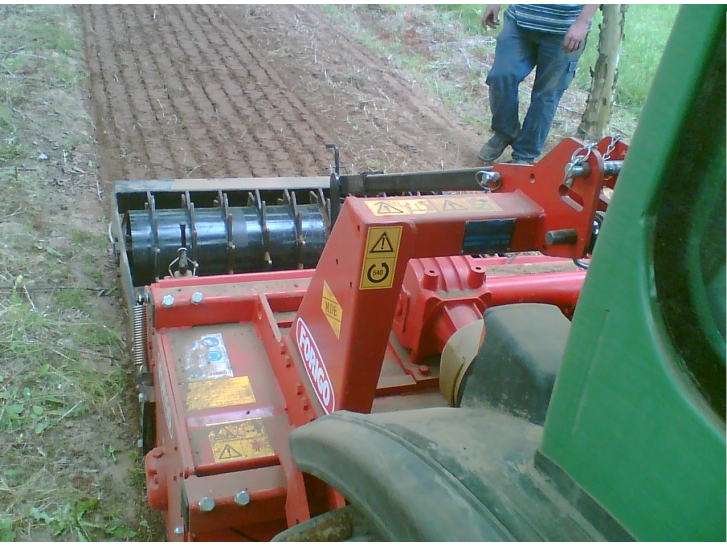

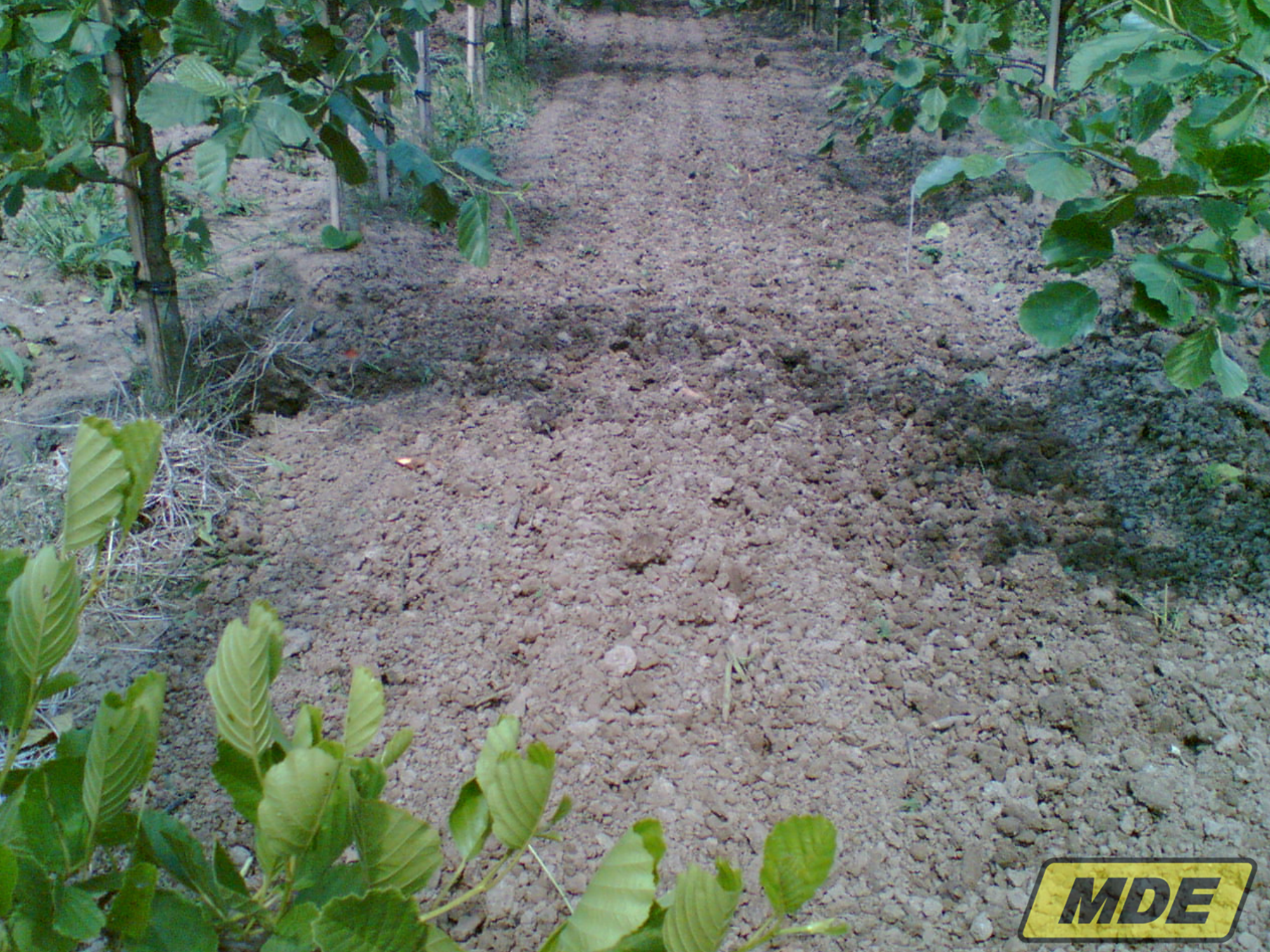

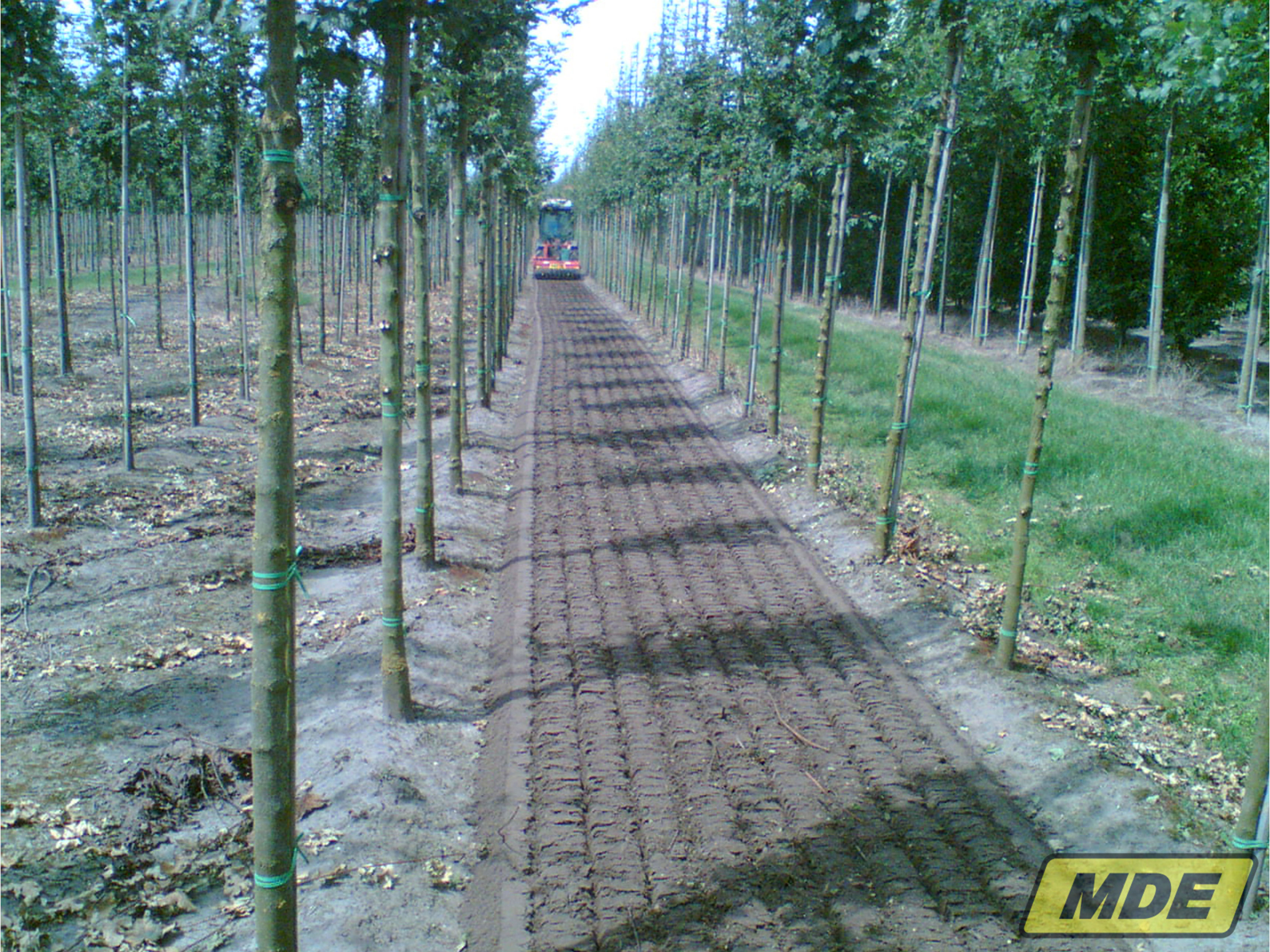

The spades have a sharpened side so that any prunings and weed left behind is no problem. The soil leveling ratavator removes the stones in the ground deeper into the ground. A leveling slide ensures a super flat result. The special profile on the packer roller ensures that holes are made in the ground so that the water is quickly drained into the soil during rain.

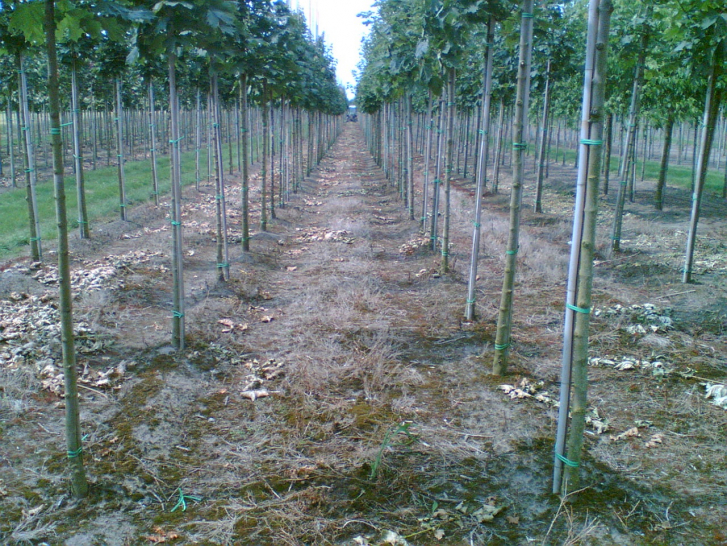

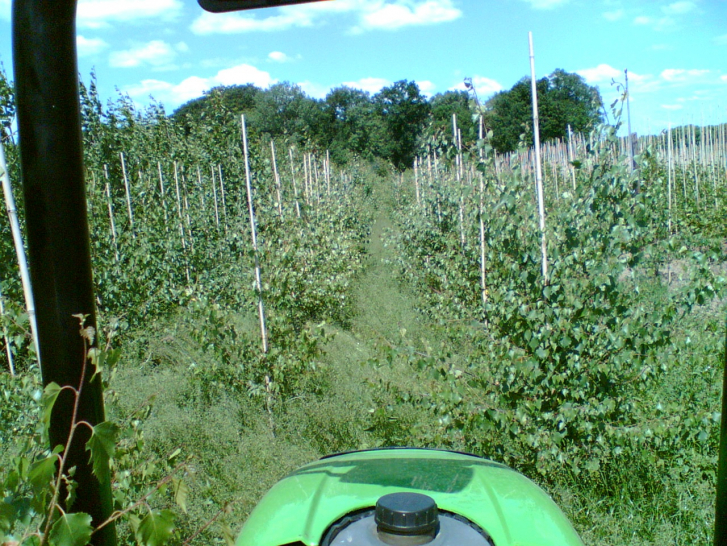

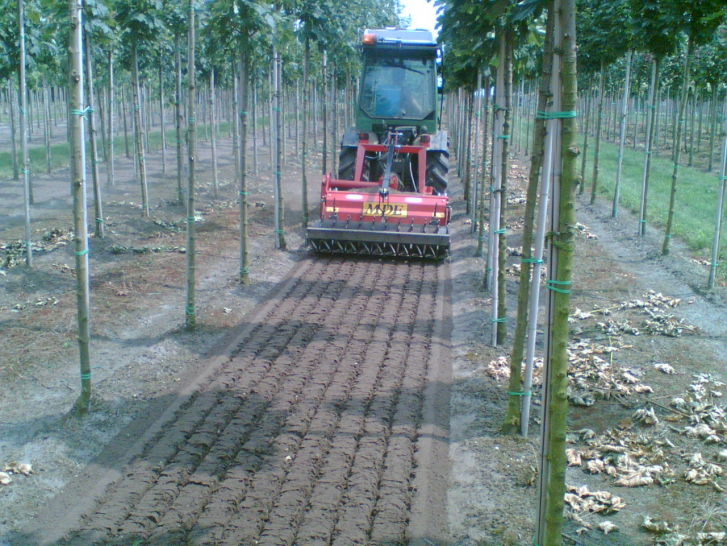

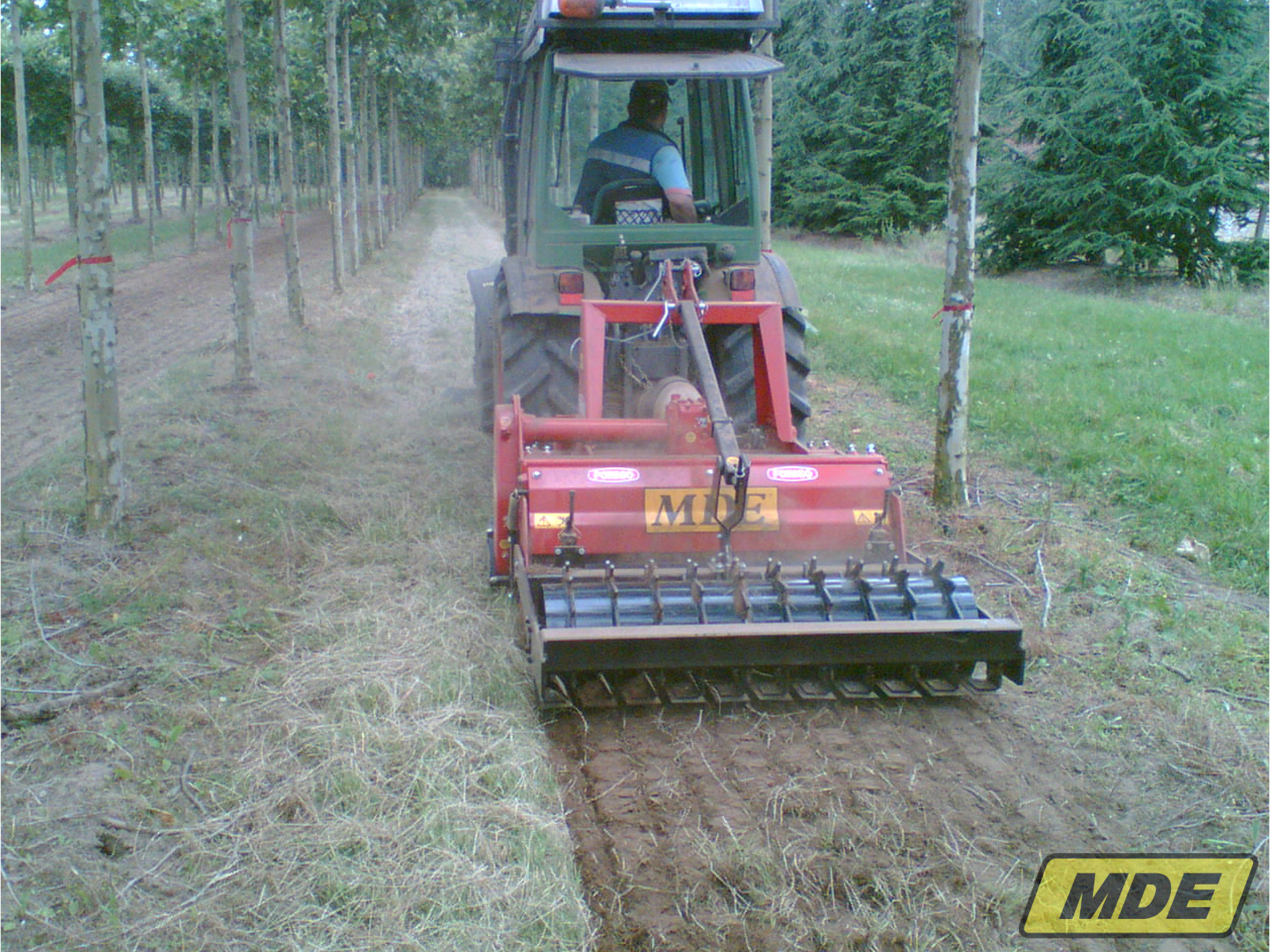

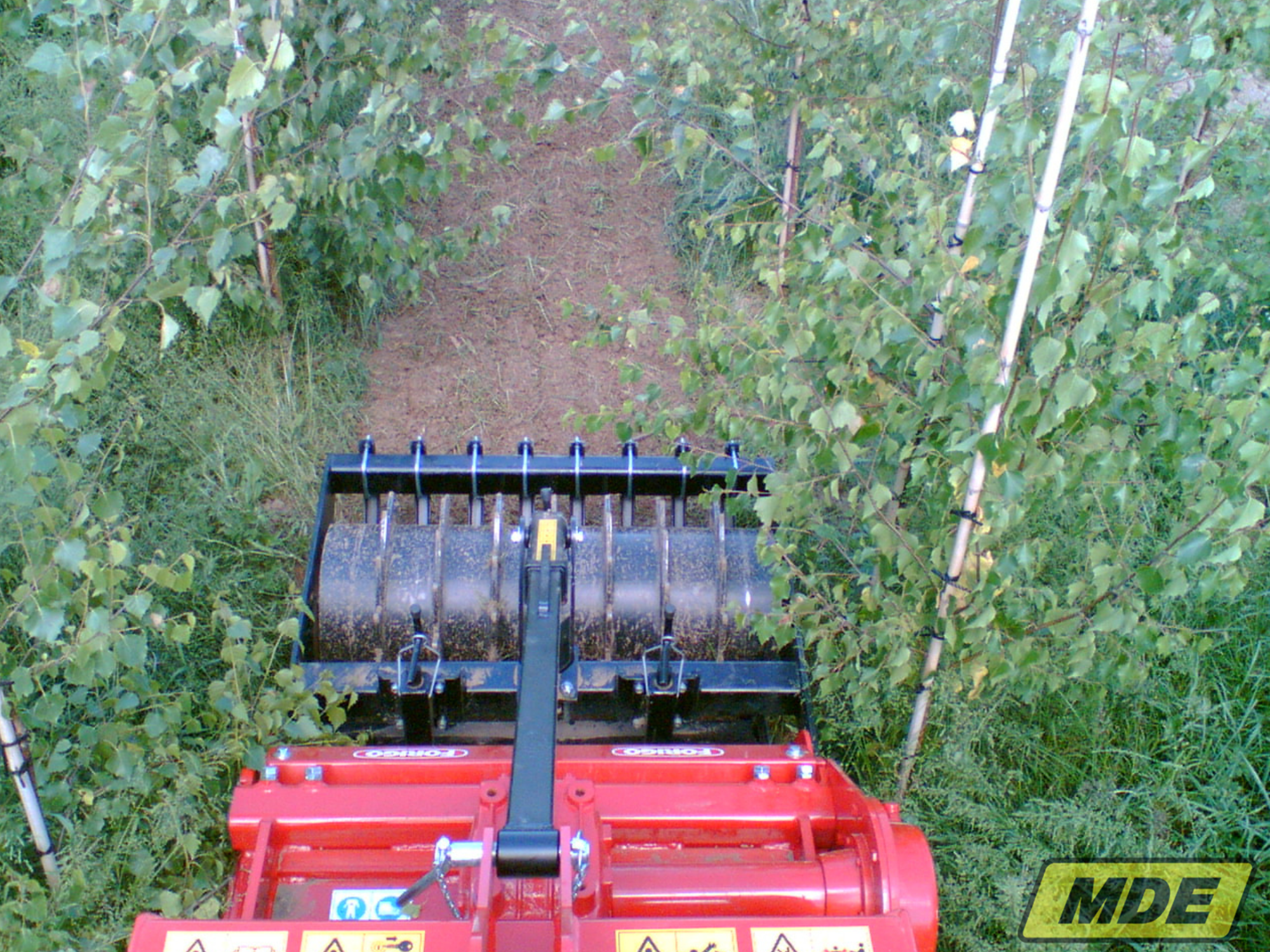

The soil leveling rotavator is a very compact and solid construction. Nevertheless protrudes minimally on both sides. This allows the soil between the trees to be worked to the maximum. The soil leveling rotavator is available in different widths.

Technical information about the soil leveling machine:
- Cat II attachment lifting device;
- Very heavy 540, revolution per minute, drivetrain;
- Lateral transmission by means of a chain in oil bath;
- Automatic chain tensioner;
- 6 spades per flange;
- Wear-resistant steel counter flanges;
- Spring-loaded selection rake behind the spades;
- Adjustable hood at the back;
- Working depth adjustable by means of spindle;
- Leveling slide adjustable by means of 2 spindles;

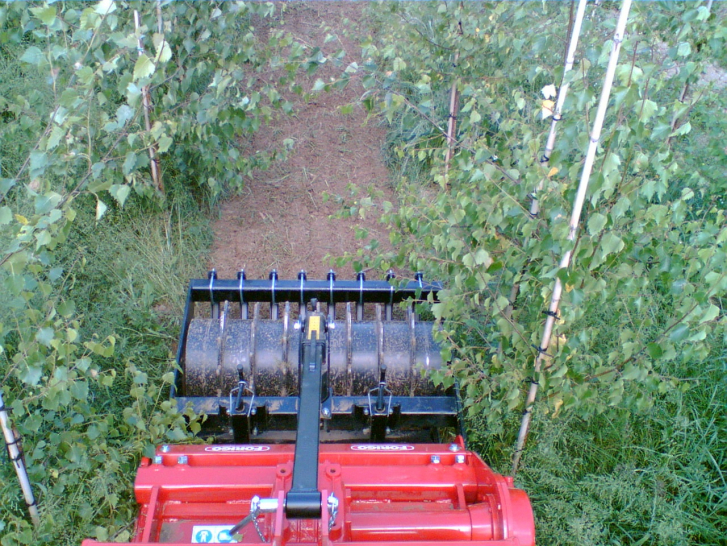

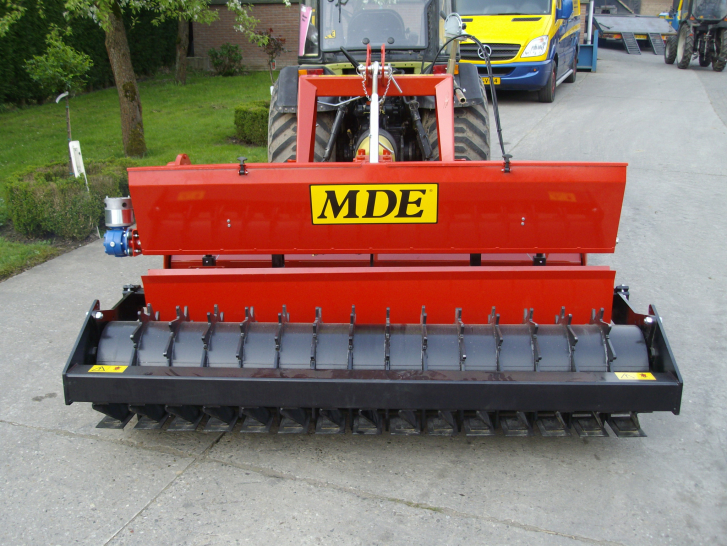

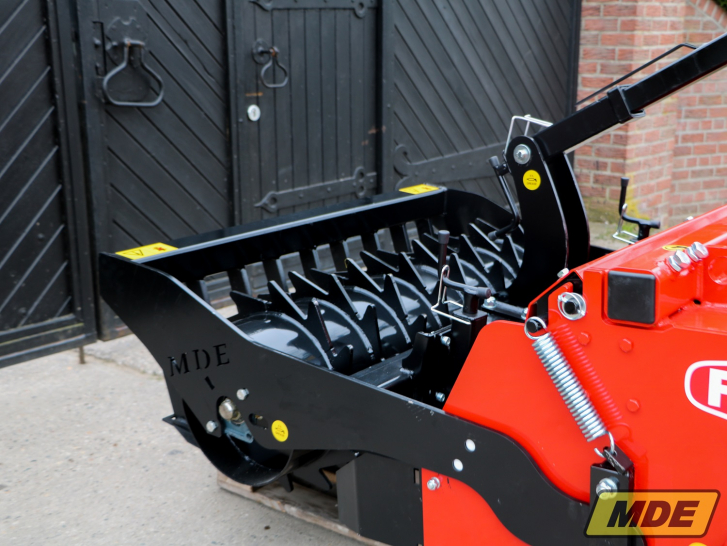

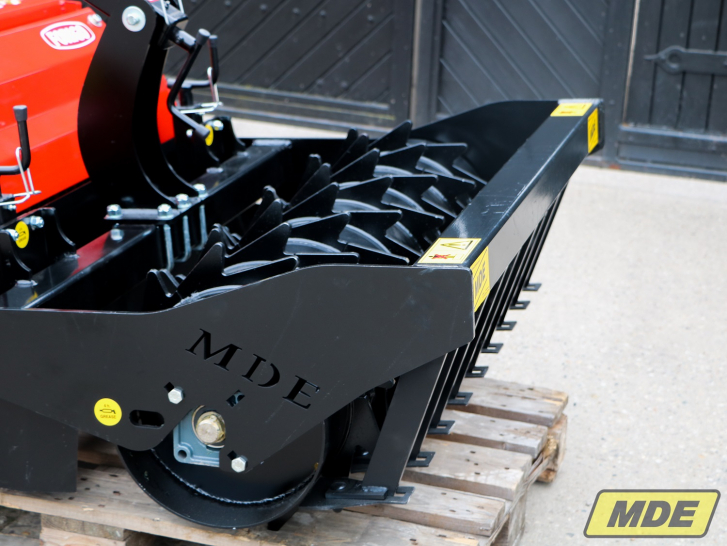

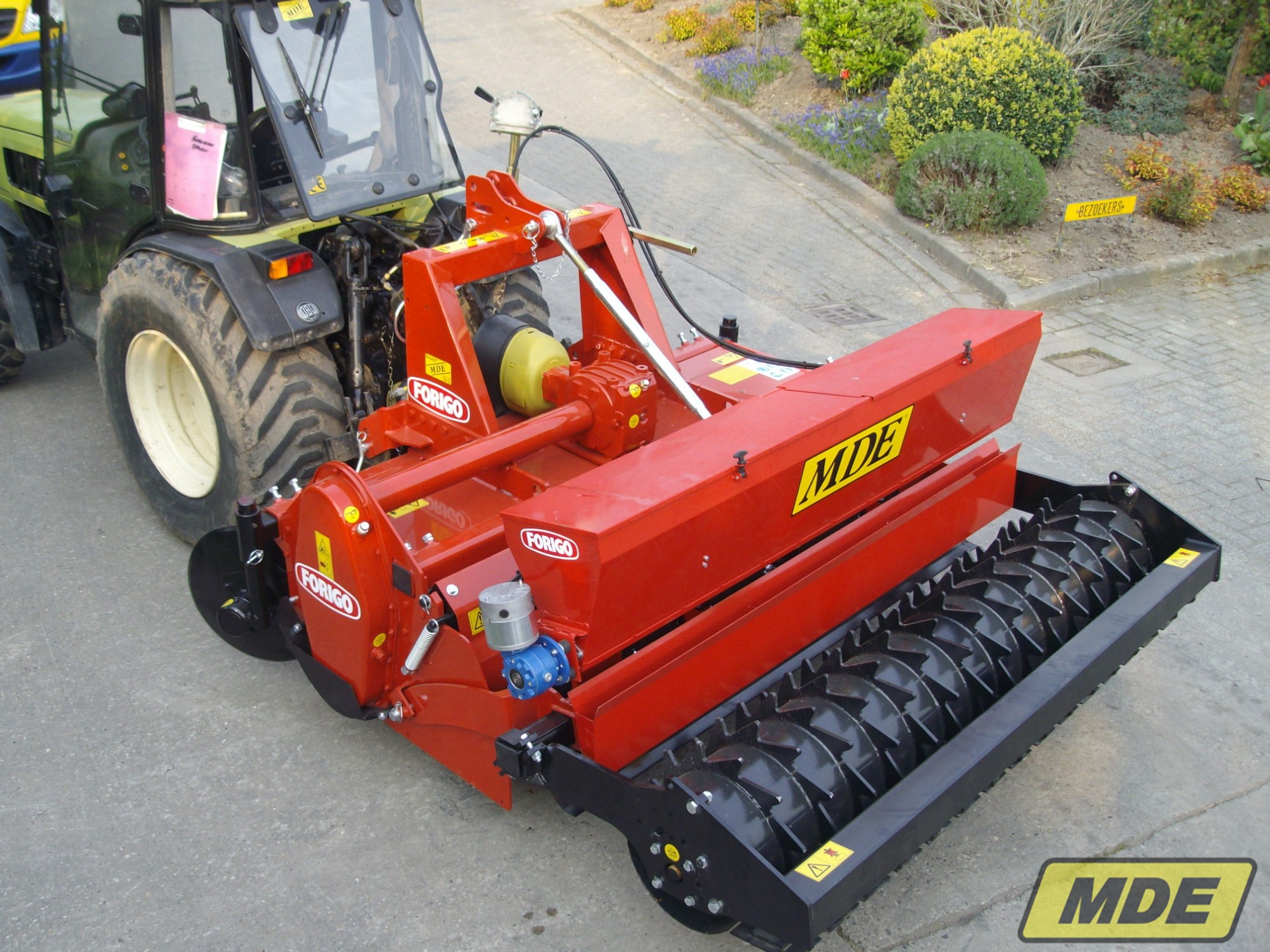

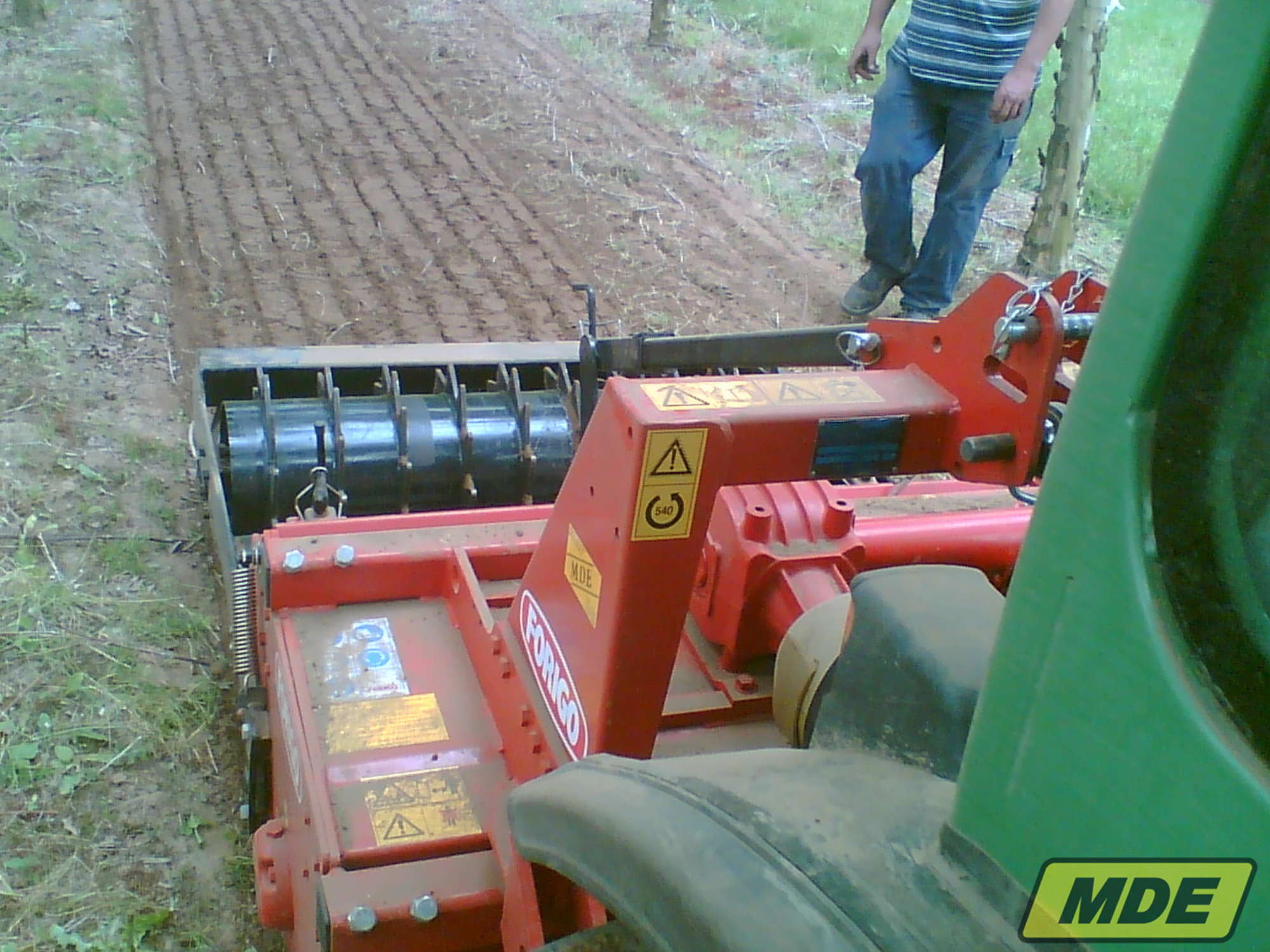

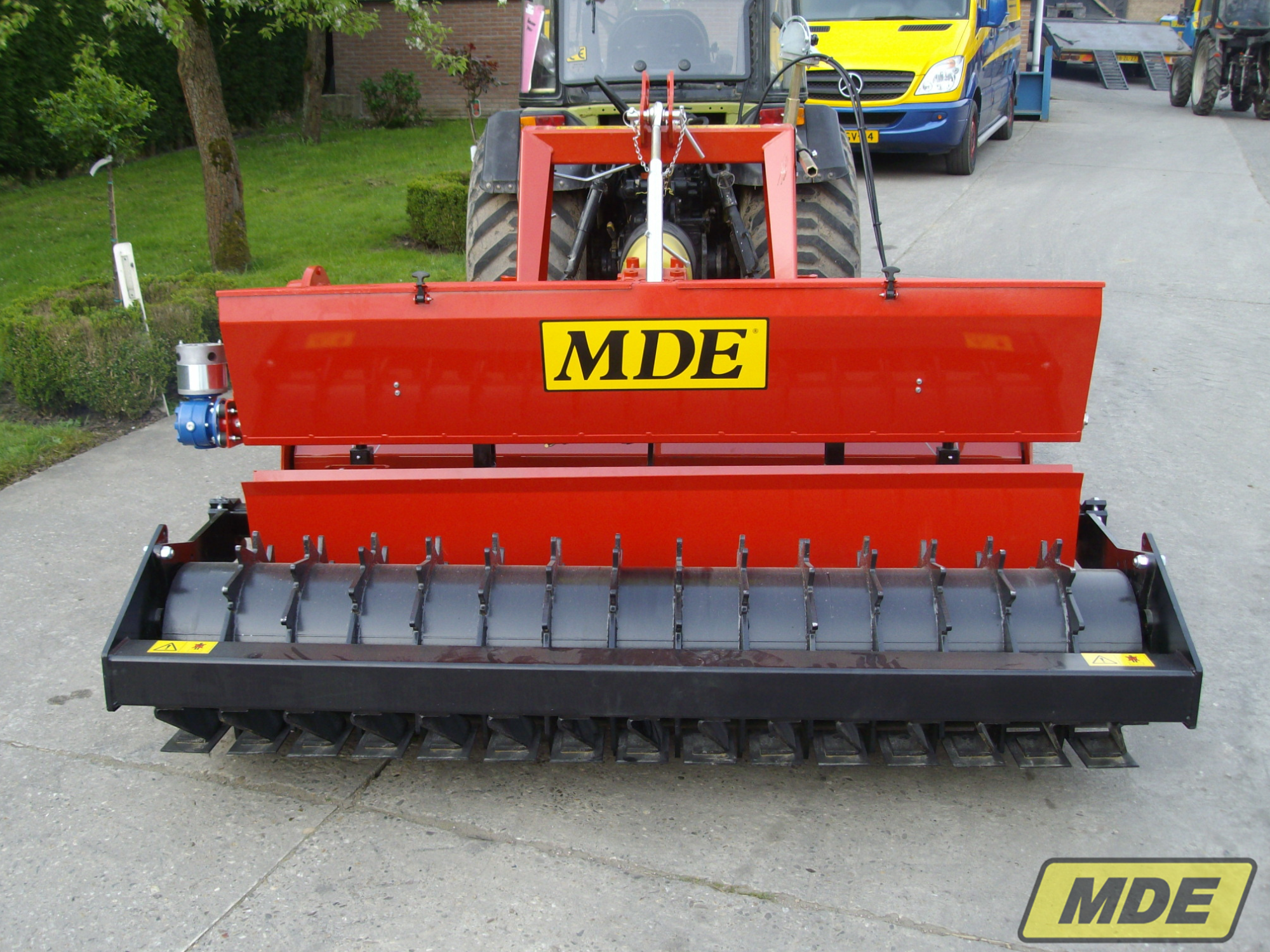

- Packer roller with adjustable scrapers;
- PTO shaft equipped with shear bolt torque limiter.
